Rapid Doors for Oxygen Reduction Environments
RAPID DOORS ORS (OXYGEN REDUCTION SYSTEM)

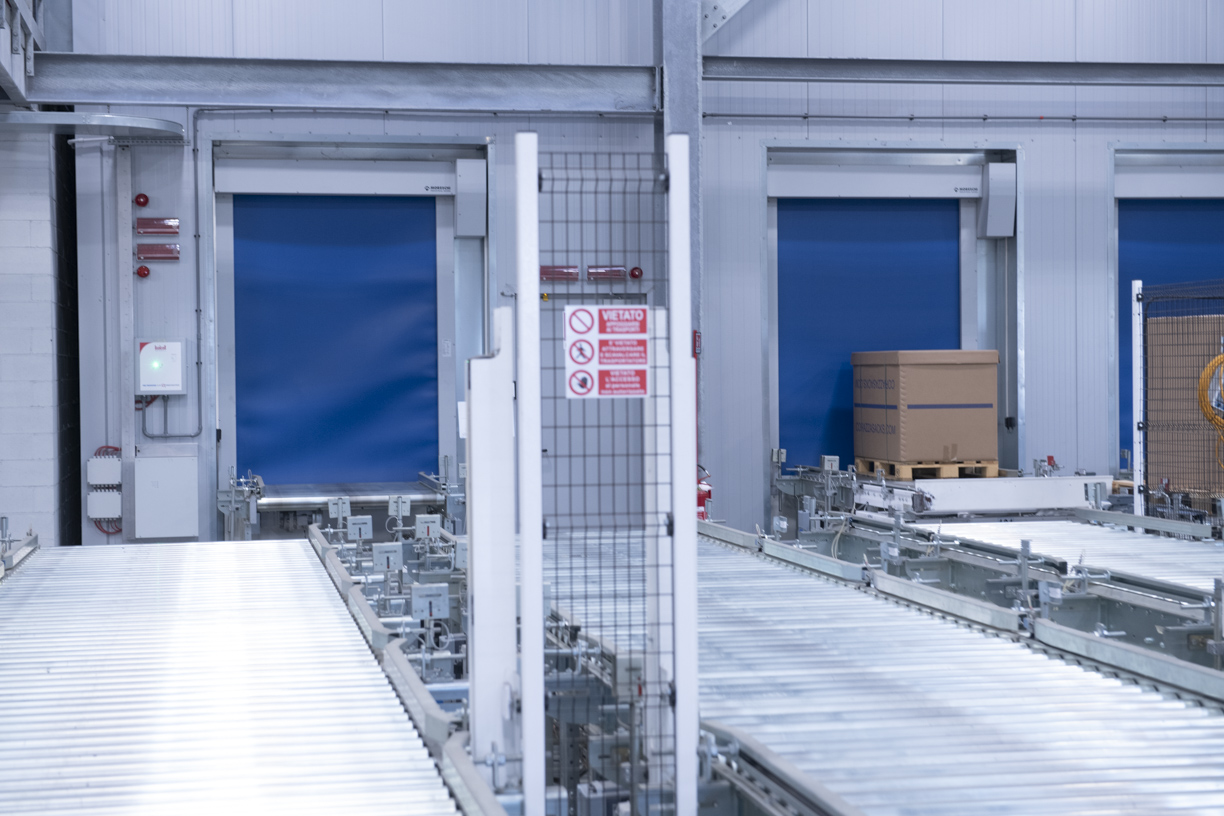

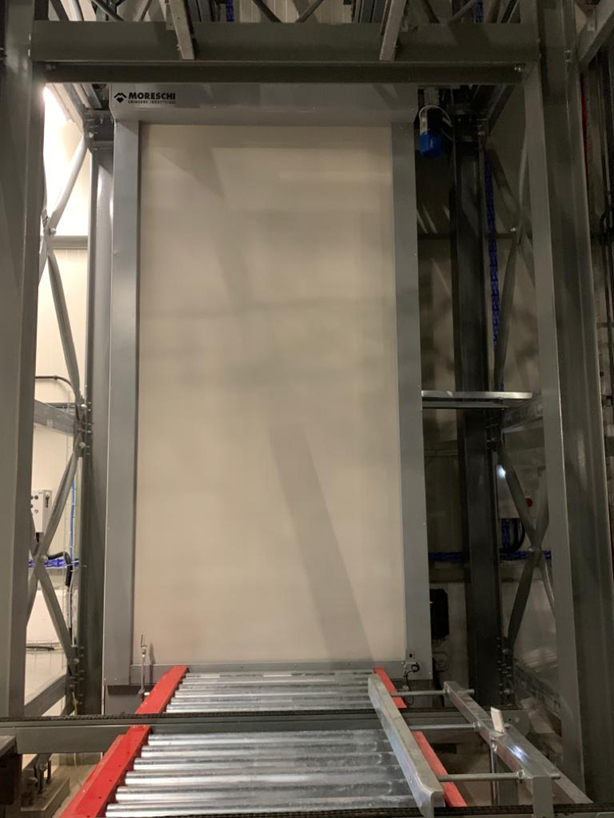

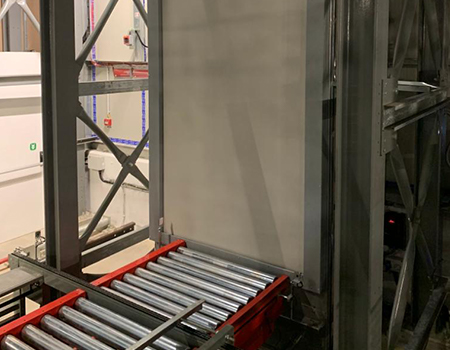

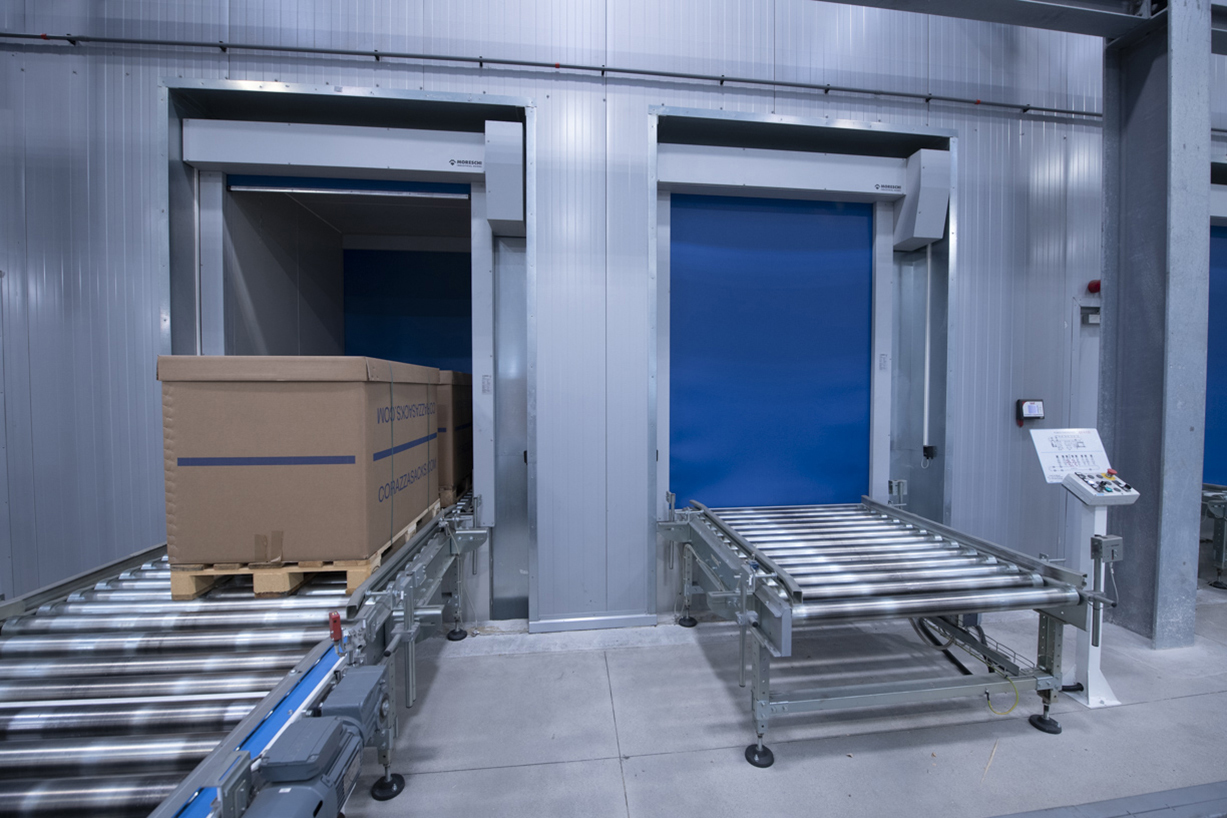

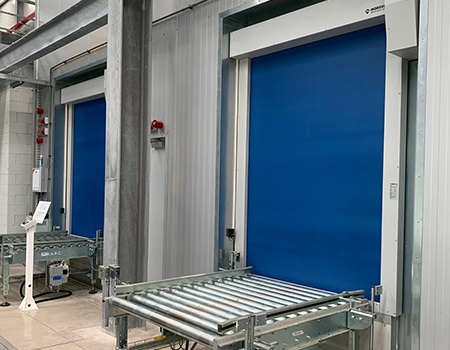

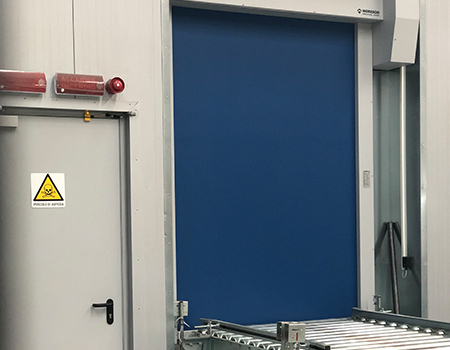

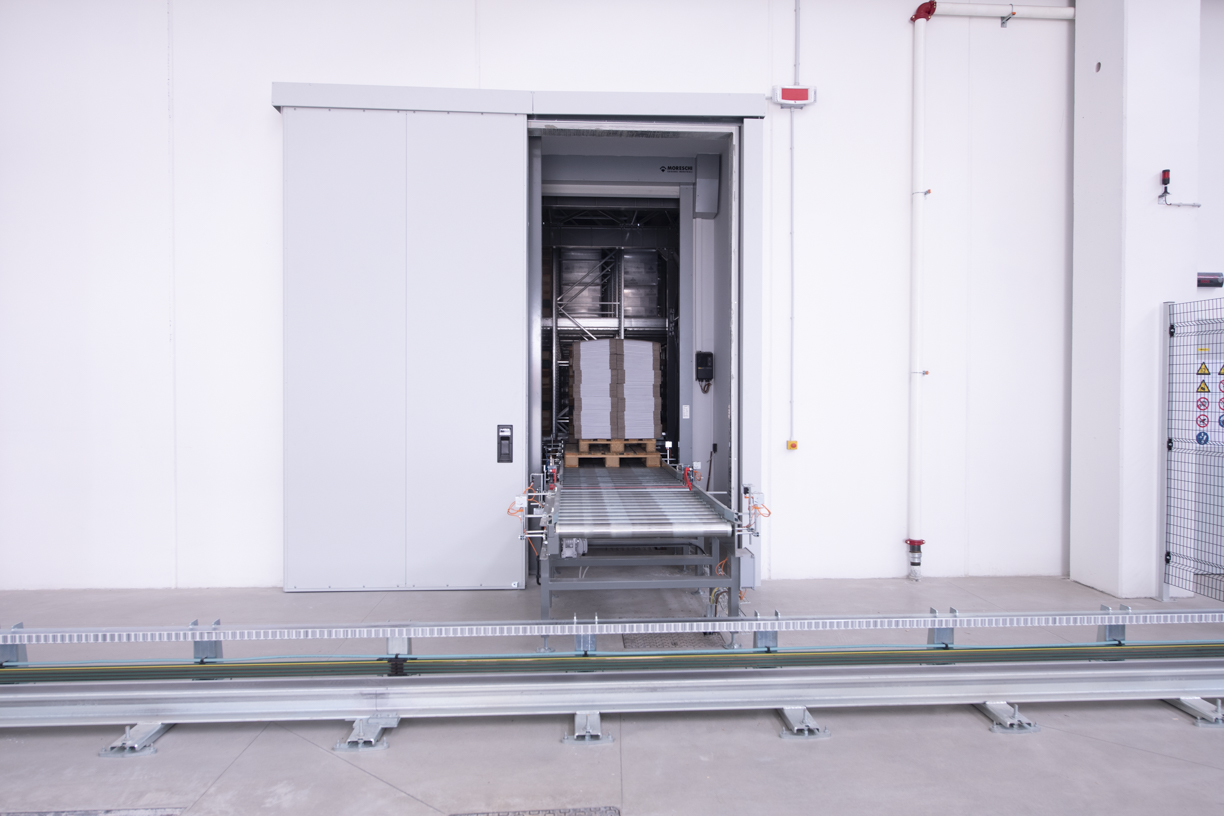

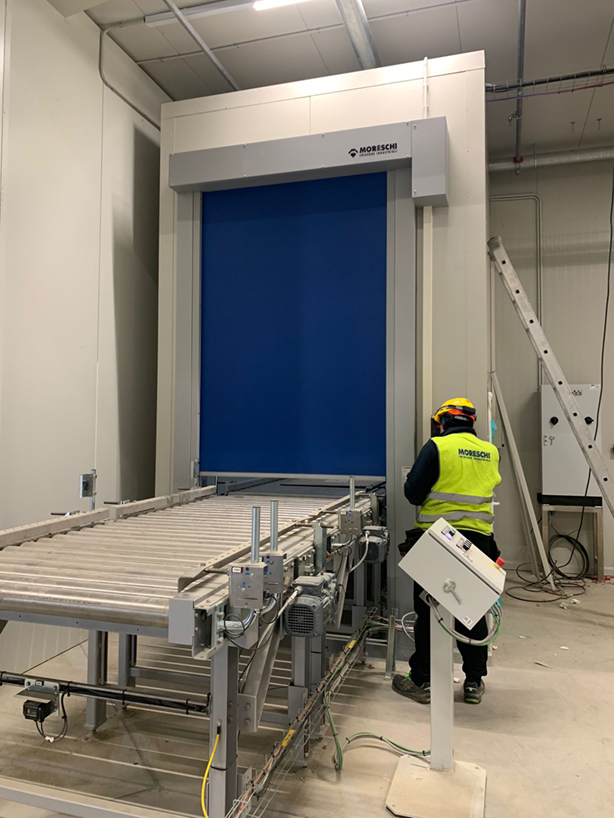

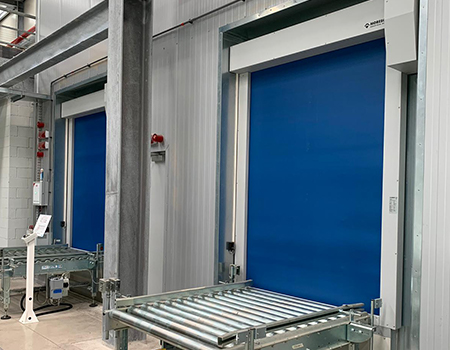

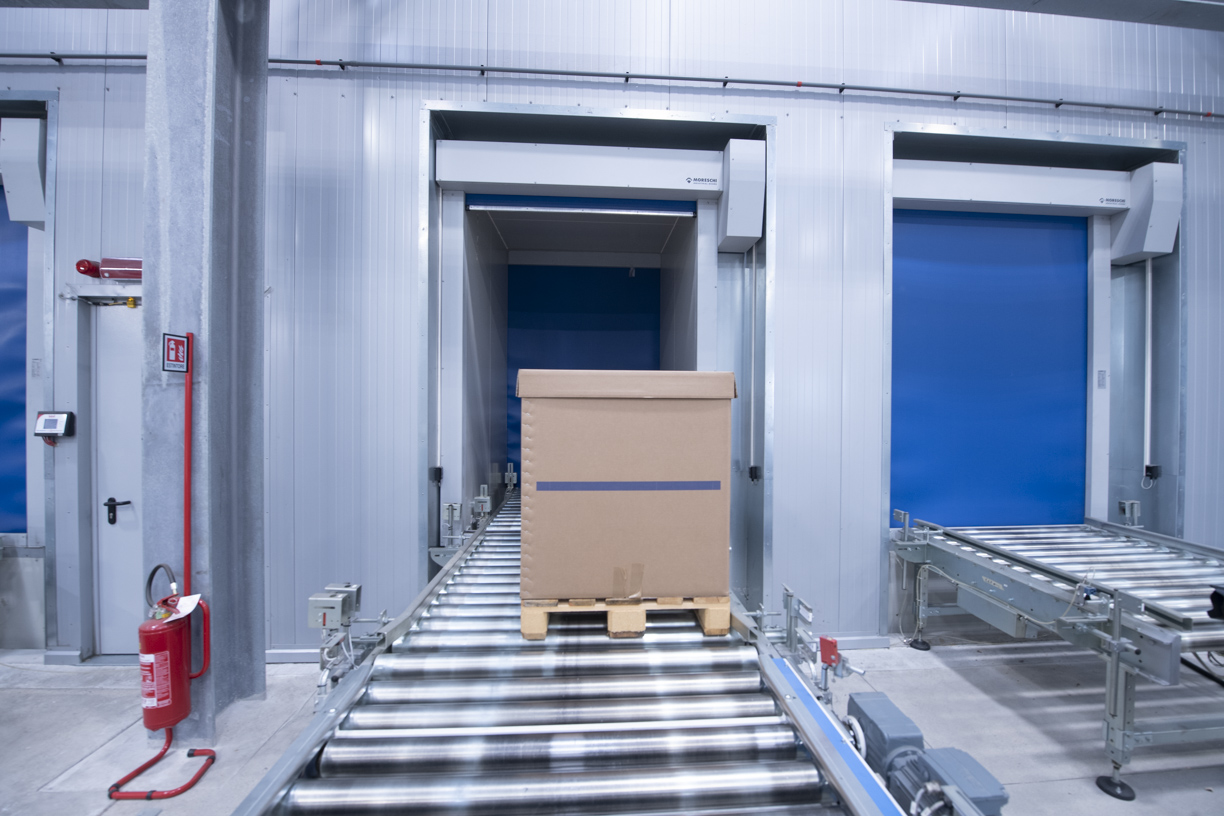

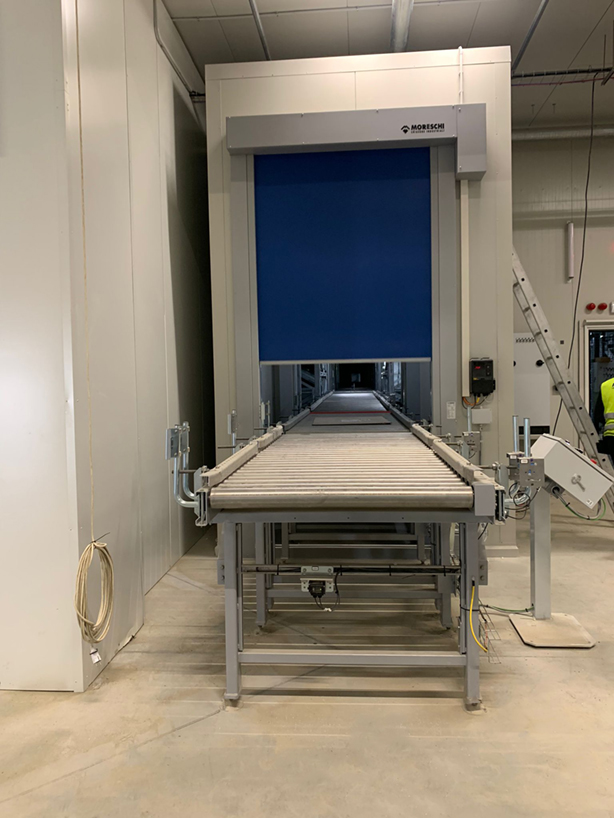

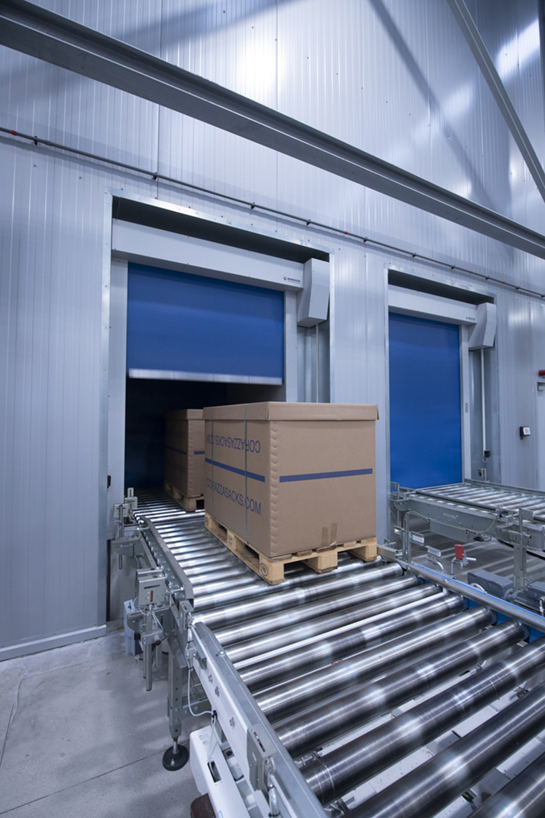

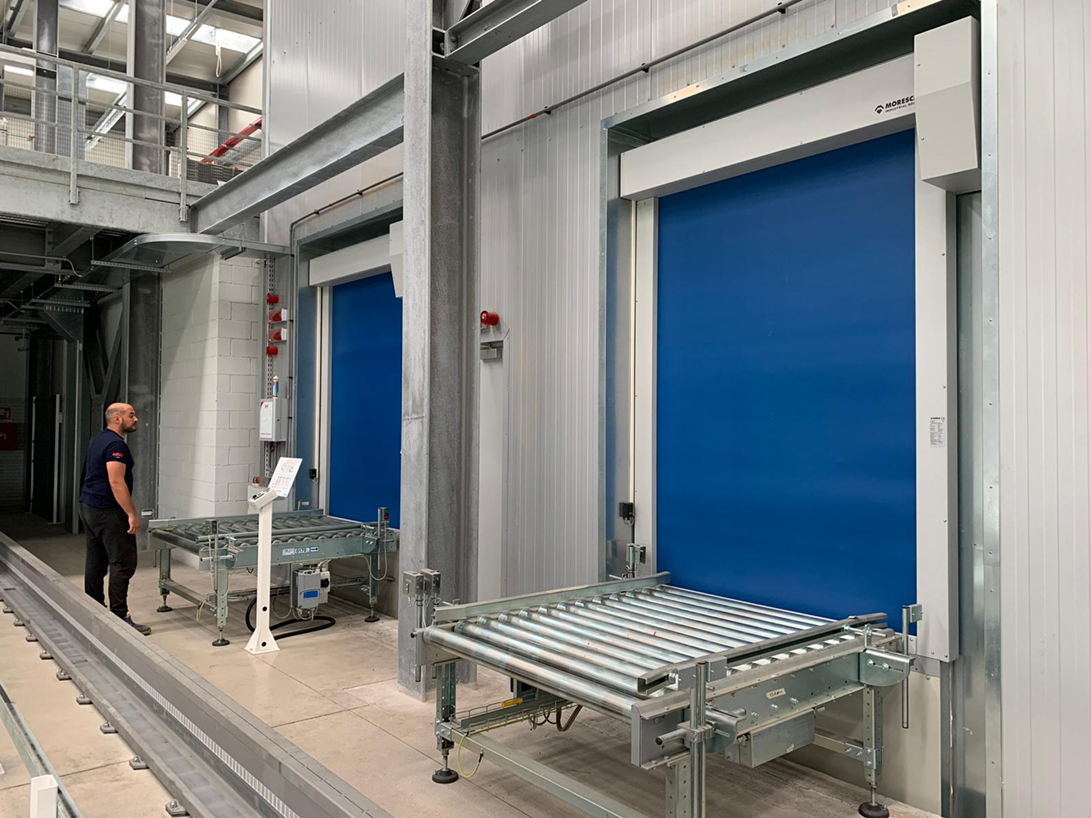

CLEAN ORS rapid doors suitable for installation in oxygen depleted environments.Our rapid ors doors guarantee airtightness and great tightness between rooms with a low concentration of permanent oxygen, compared to normal environmental conditions.
TECHNICAL PRODUCT INFORMATION
Structure: Frame on 4 sides. Folded sheet metal with standard finish painted grey similar to RAL9006. Removable casing for maintenance.
Curtain: Antistatic fabric. Standard colours (similar RAL): Grey (7038), Blue (5005). The lower baseboard is made of sheet metal with standard finish painted grey similar to RAL9006.
Motorization: Worm geared motor unit external to the structure covered with crankcase. Nominal speed up to 1.25 m/sec. Control unit with external inverter that allows programming the movement of the sheet with acceleration and braking ramps and speed control.
Fields of application with temperatures between +4° C and +40° C
Air permeability with pressure of 50 Pa < 6 m³/m²*h EN12426
220V single-phase power supply
CE marking EN13241-1
Optionals:
Antistatic sky blue (5015) smooth antistatic sheeting
Viewer with wide-angle camera
Window section h.500mm
Construction with UL components
UPS
DOWNLOAD DATA SHEET
SPECIFICATIONS

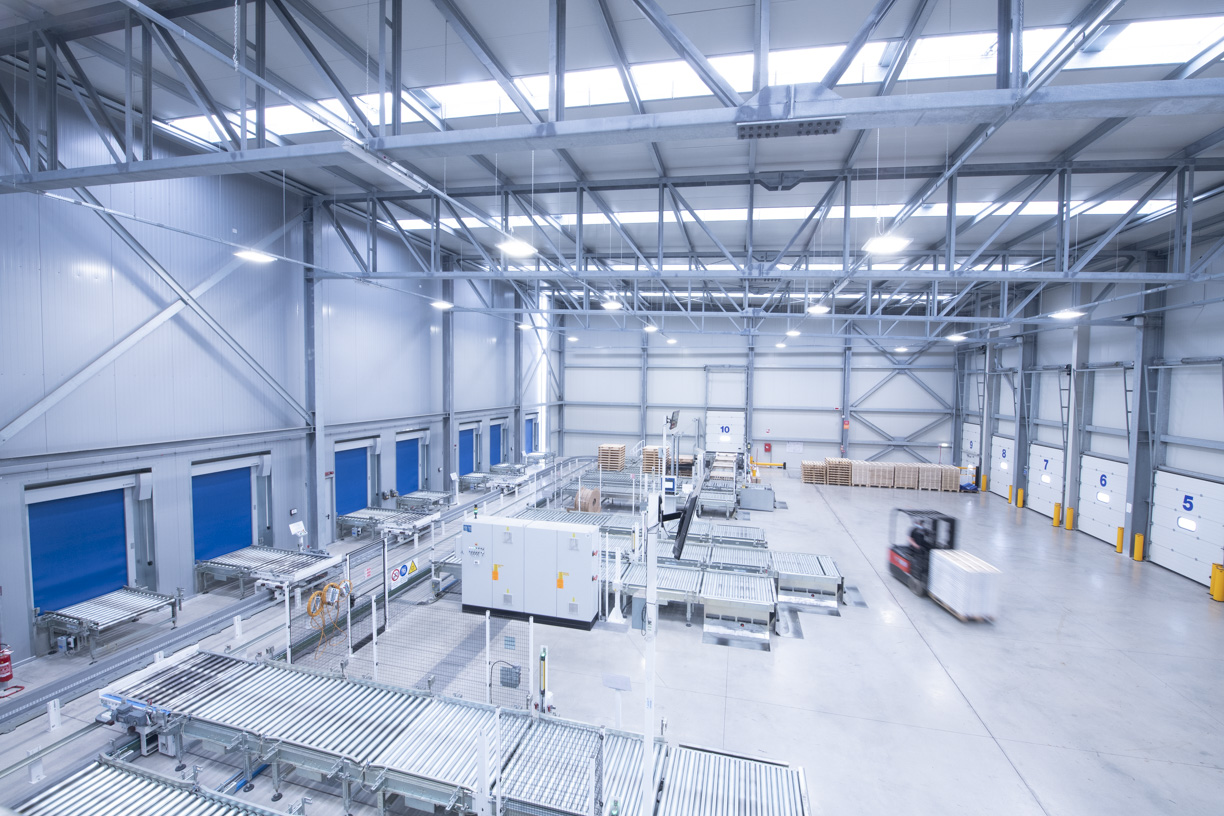

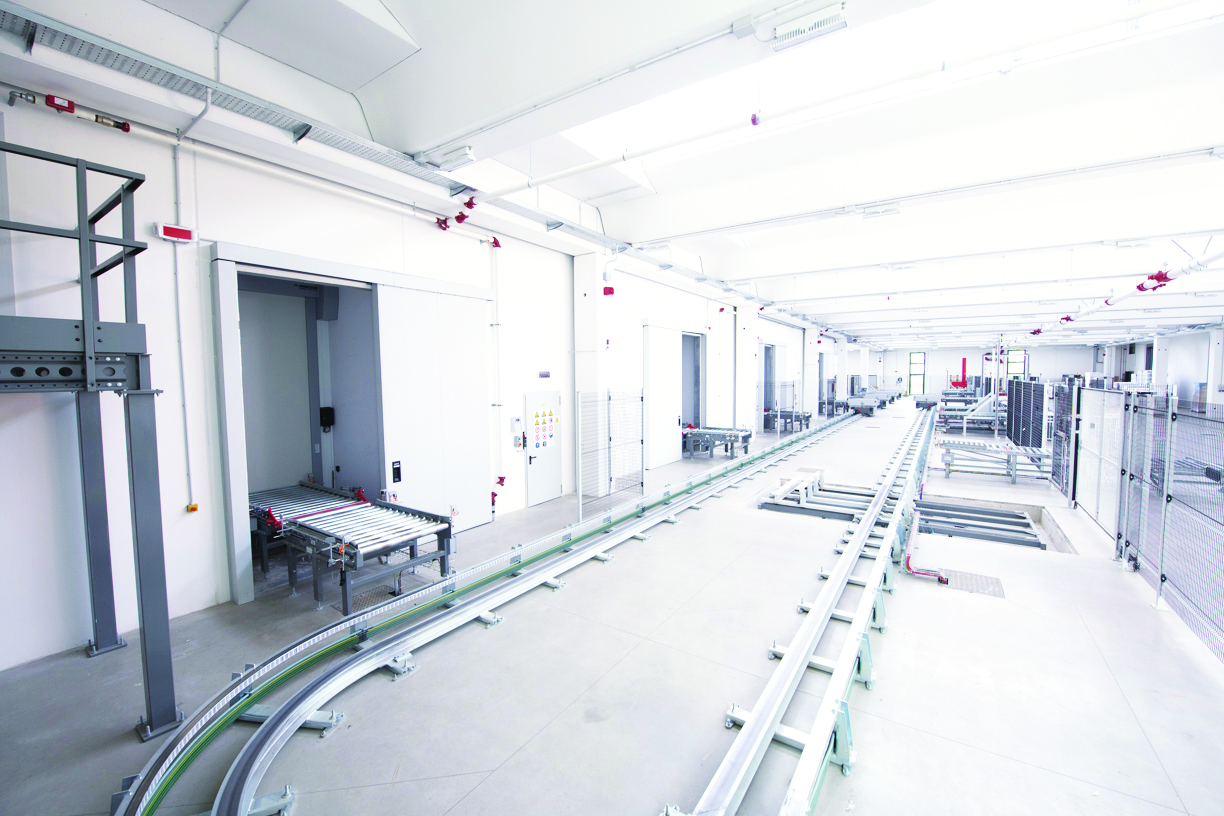

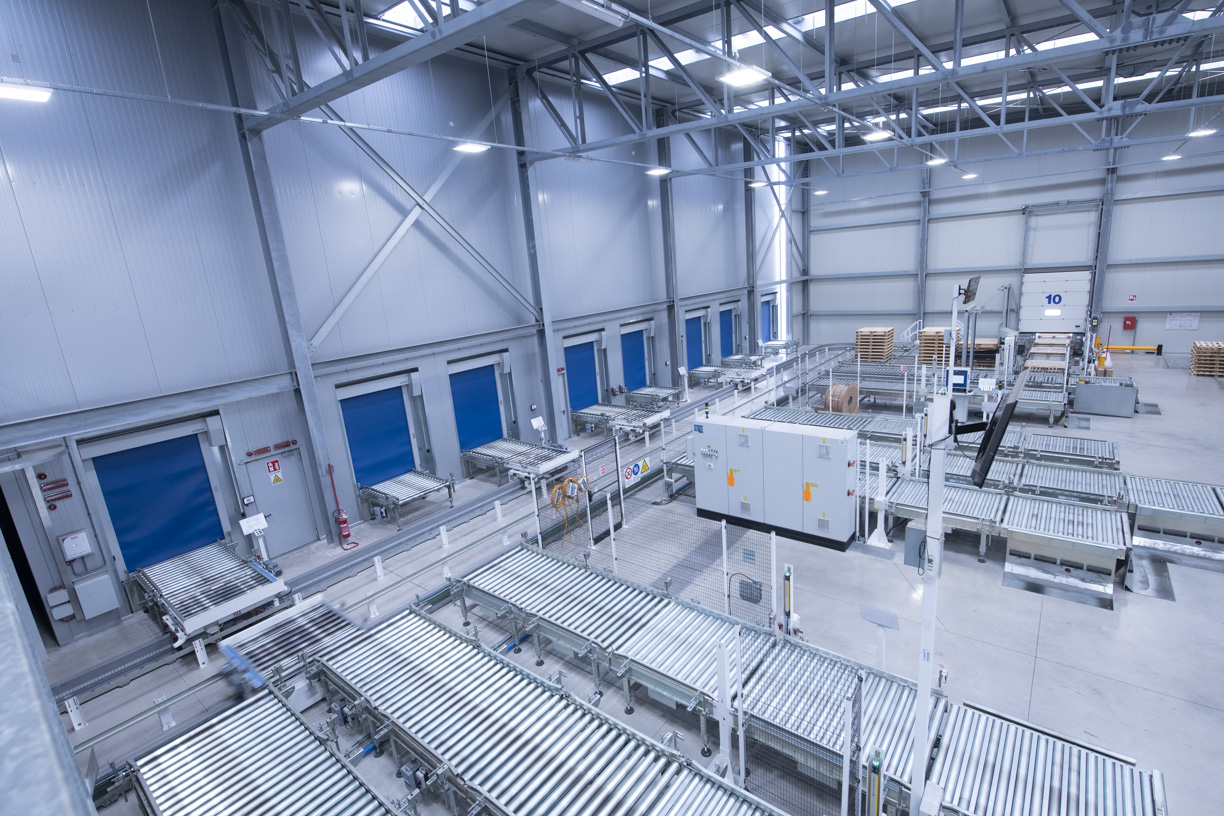

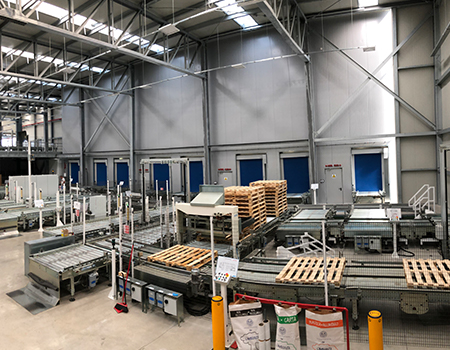

A refined design combined with a solid structure guarantees maximum sealing performance inside the automatic warehouses, reducing the system management costs.
Maximum standard dimensions: L 2850mm x H 3000mm
Standard colours (RAL similar): Grey (7038) antistatic, Blue (5005) antistatic.
Suitable for indoor use.
