FLY MULTIPURPOSE - Single or double leaf multipurpose fire rated door

Versatile and reliable

FLY MULTIPURPOSE - Single or double leaf multipurpose fire rated door

Multi-purpose fire rated doors are the ideal solution to guarantee the safety of people inside the room.
Installation is very simple: each door is delivered already assembled and ready for installation.

TECHNICAL PRODUCT INFORMATION

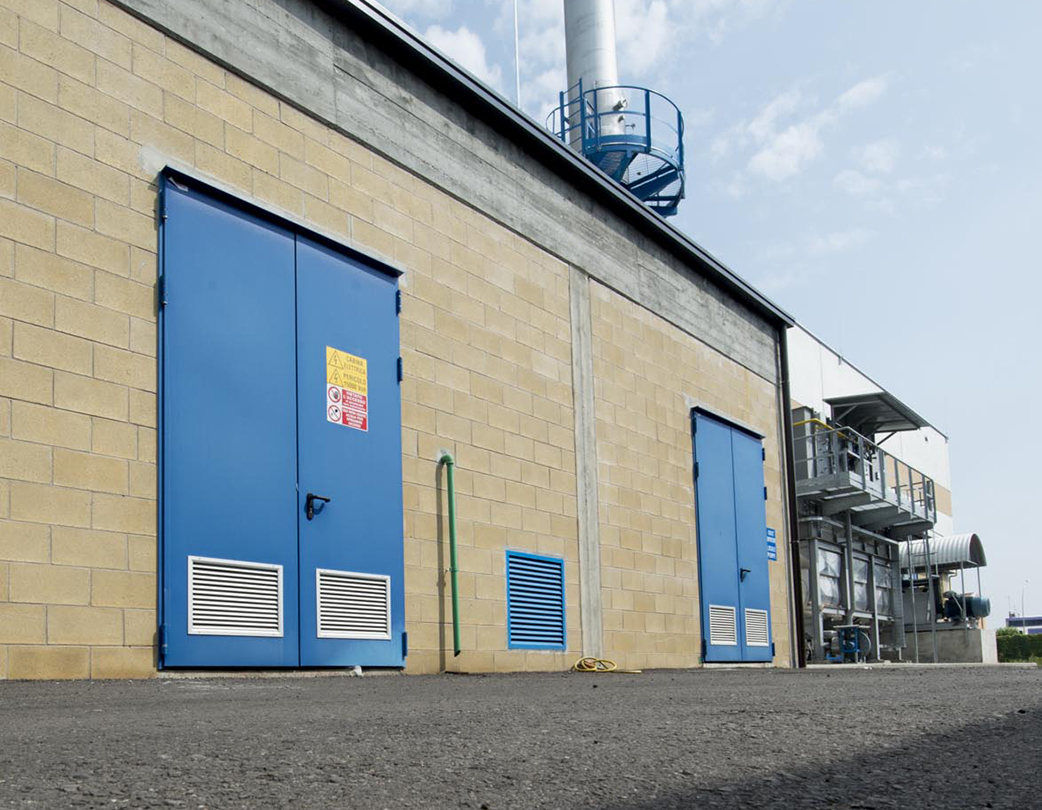

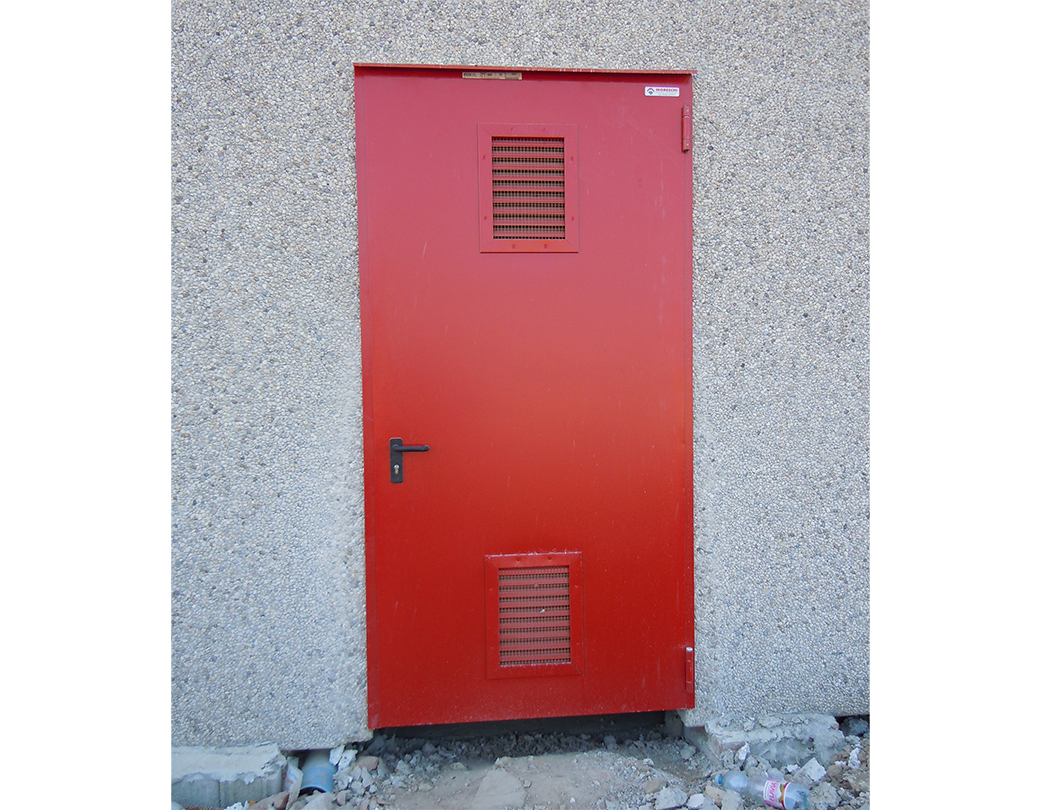

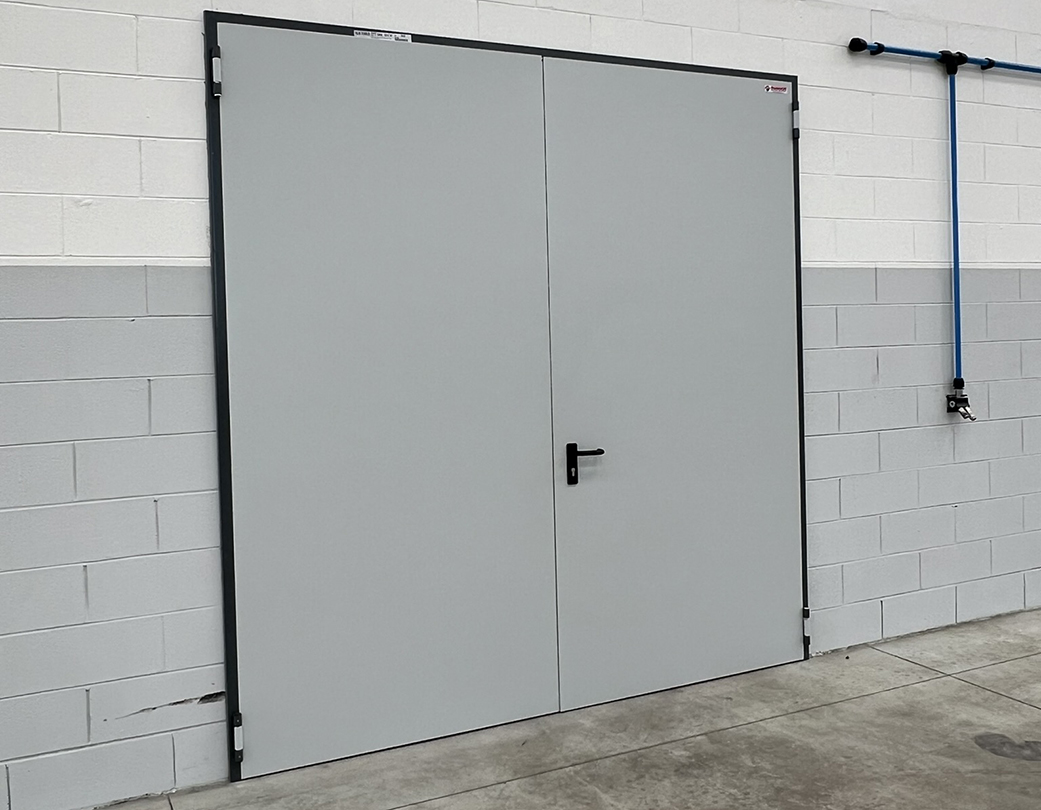

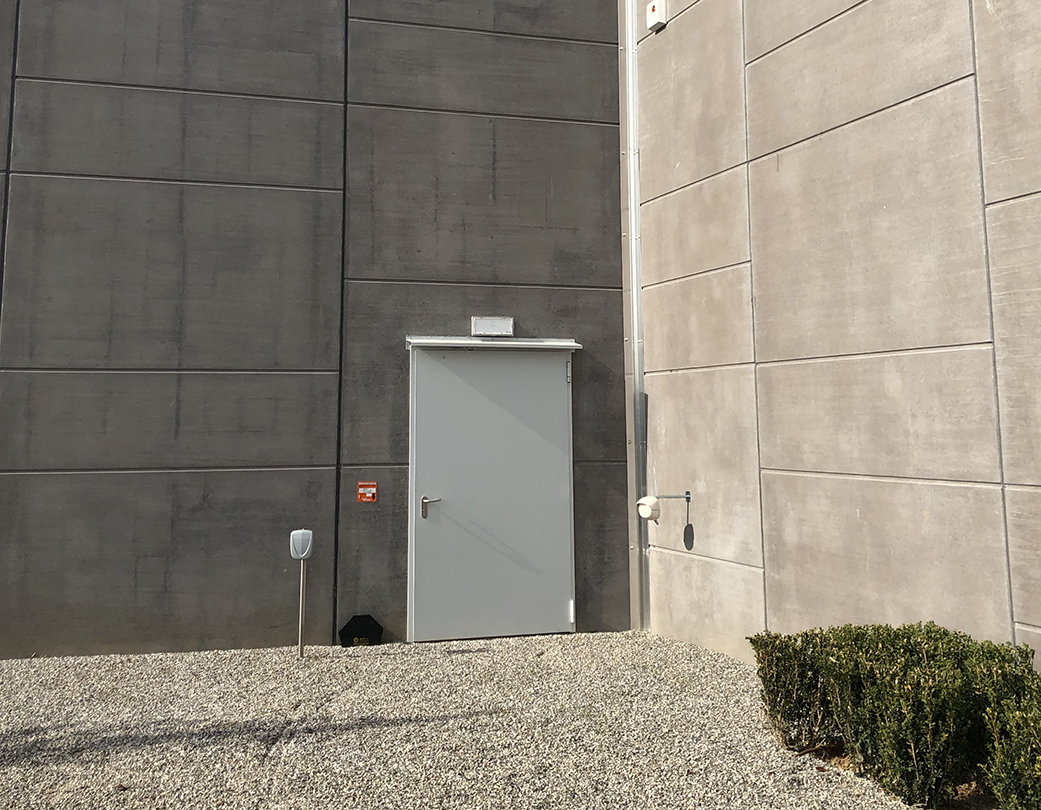

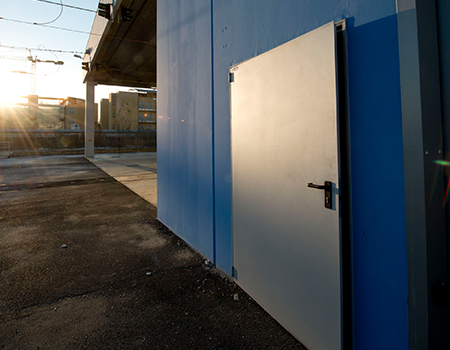

Multipurpose door with 1-2 leaf composed of 60 mm thick panels.

Each panel is covered with galvanised steel sheet (Sendzimir galvanised steel), and connected to a galvanised steel structure reinforced with rock wool for thermal insulation.

The panels are obtained by a first continuous lamination process, following a phosphating process and a final layer of paint on both sides of the epoxy-polyester interior panels.

The finish consists of painting with a thickness of 70 micron applied on the external side of the panel. So that the surface is completely smooth. The pre-painting finish provides 400 hours of resistance in a saline atmosphere chamber without any alteration.

The embracing metal frame is made of painted steel profiles with perimeter seal. The door frame consists of a galvanised steel frame so that it can be fixed to the wall by means of metal dowels as standard (possible fixing with expansion dowel or screwed on plasterboard walls on request). The door is equipped with two hinges, one with thrust bearing system and screws for vertical adjustment of the door and one with spring for self-closing of the door. The matt black hinges (No. 02 for each door) are designed according to EN1935. Lever designed according to standard conformation (safety requirements) with steel central part and nylon covering.

Finish: painting with epoxy-polyester powders thermally hardened in oven at 180°.

Finish: primer Curtain after oven curing 160° epoxy-polyester for indoor use.

Weight:35 Kg/m² wall hole

Doors to wall at the customer's expense, to dowel on masonry or screw on carpentry

Optional

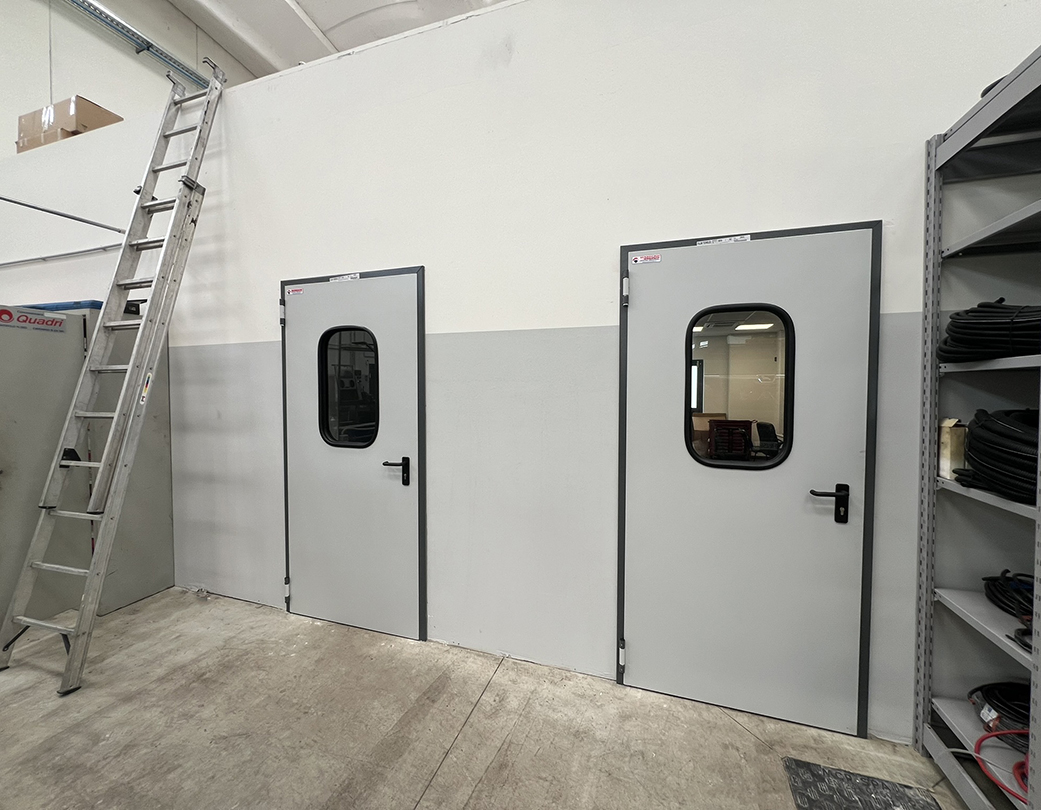

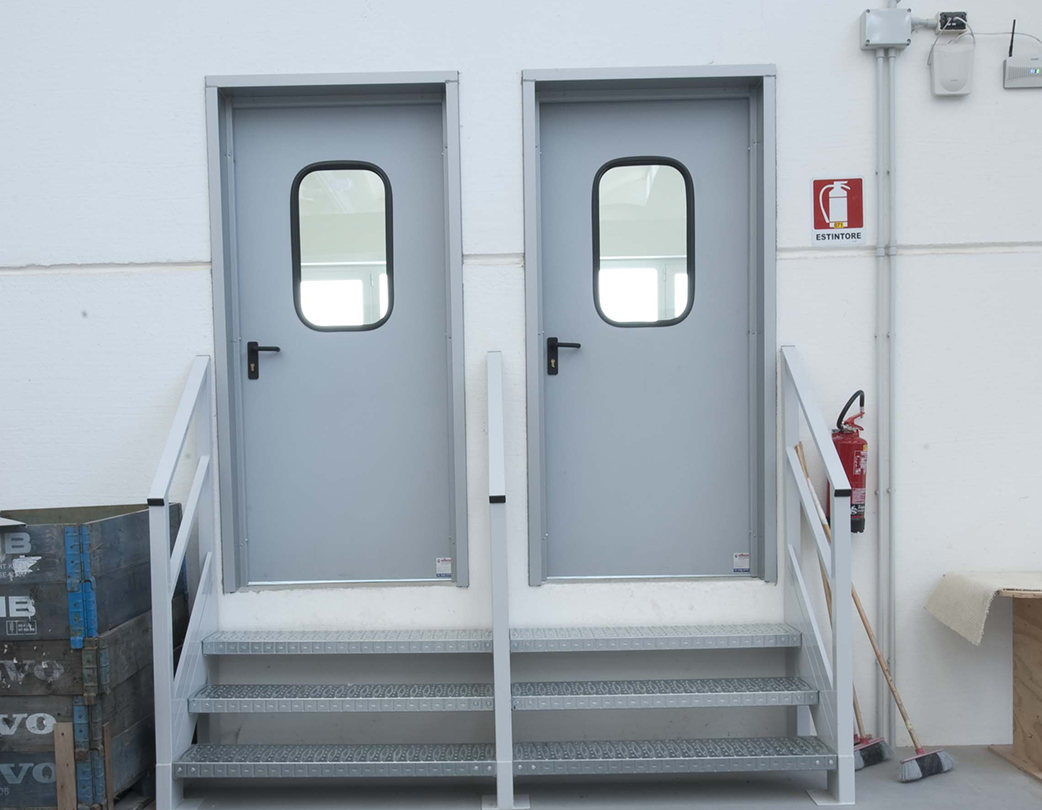

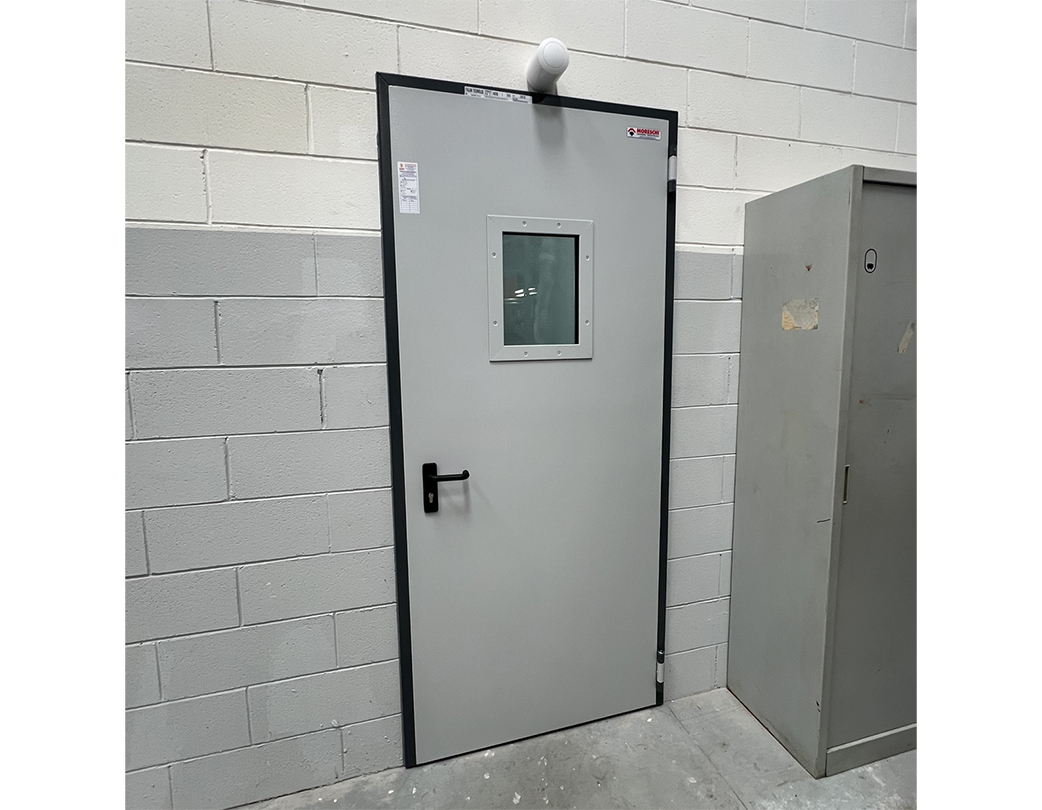

-Visual lights

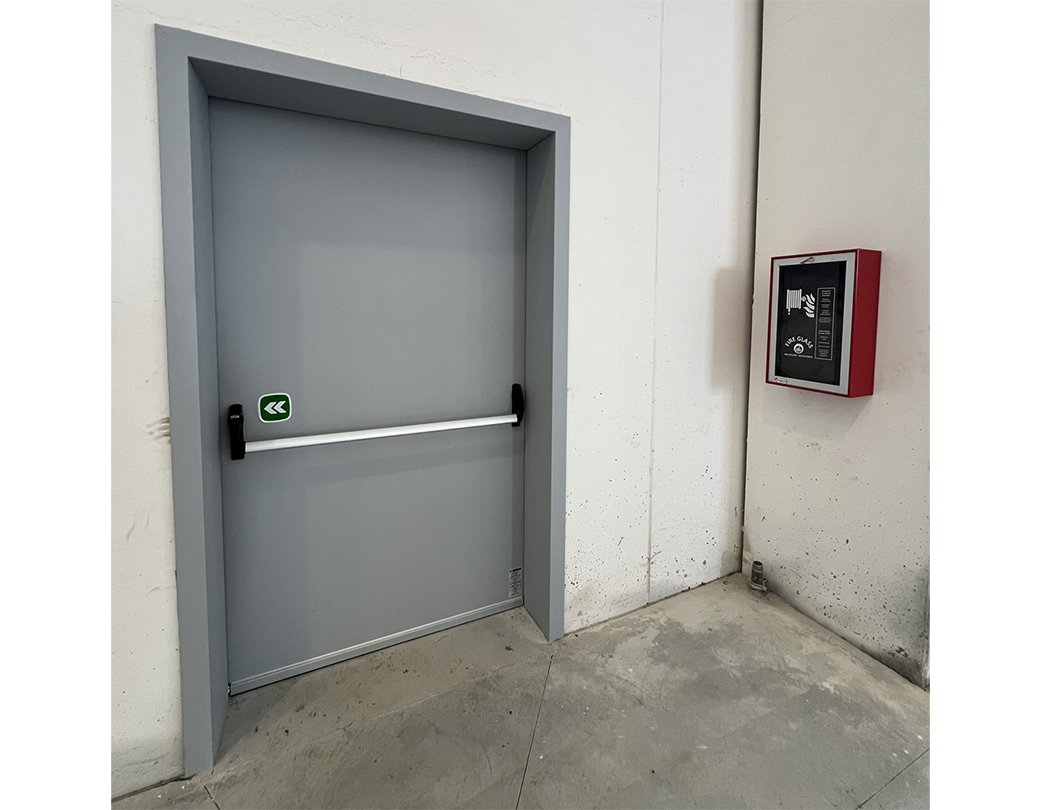

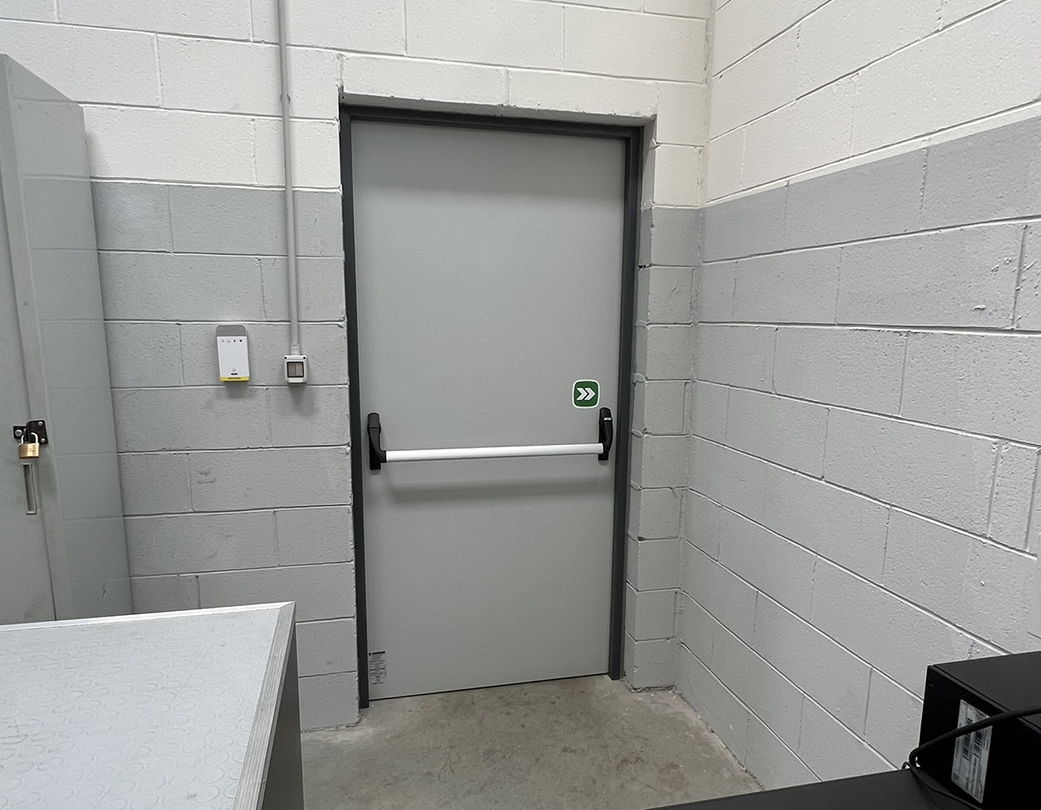

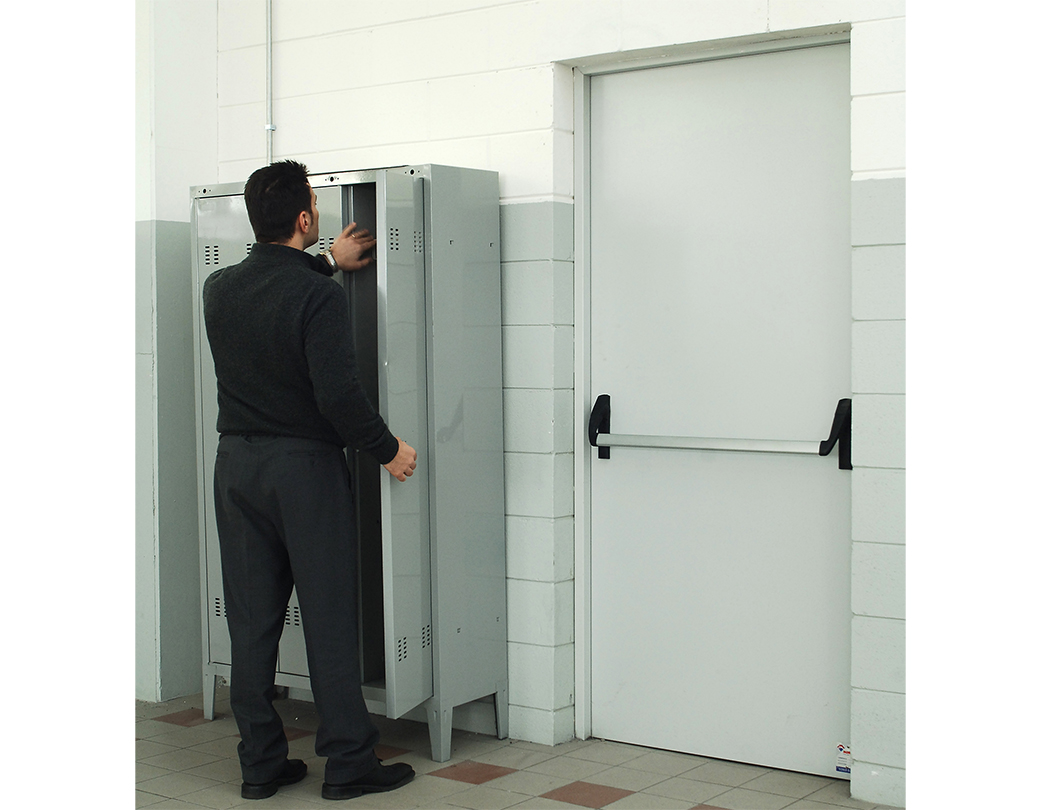

-Panic bar

-Panic bar for double leaf doors

-Access control

-Door closer to DIN standards

-Unified cylinders

-Kit with dowel on masonry wall

-Under door seals and rebate seals

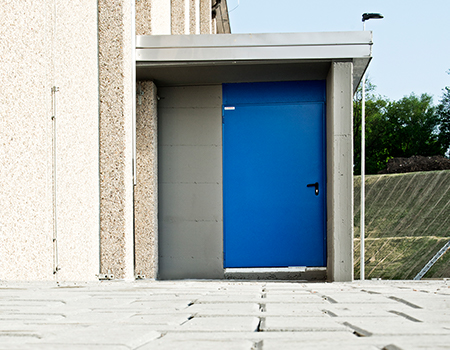

-Painting in RAL colour: your choice

DOWNLOAD DATA SHEET

SPECIFICATIONS

Made in standard, semi-standard or one- or two-door sizes, it adapts to every need.

Customizable dimensions.

Standard colour grey RAL 7035
On request: oven-baked painting in RAL colour

Suitable for indoor and outdoor use
