SECTIONAL DOORS

Cutting-edge technology and versatility

SECTIONAL DOORS

The Moreschi sectional doors offers a wide choice of construction variants and is able to meet the different needs of the company.
During the design phase, our technicians are able to indicate the best sliding solution, so as to optimise the overall dimensions and improve efficiency.

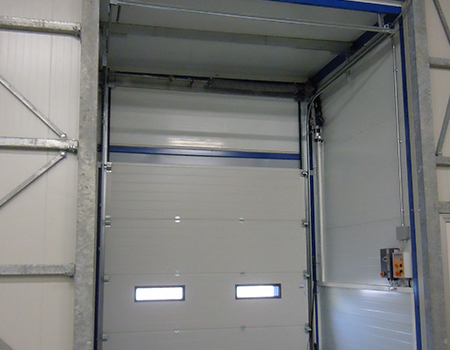

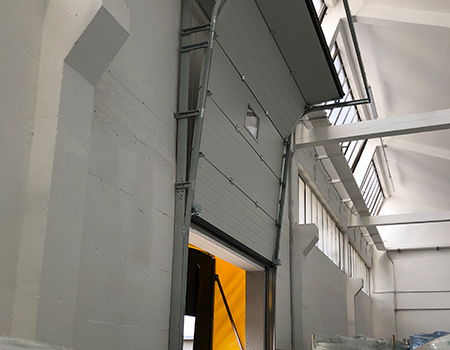

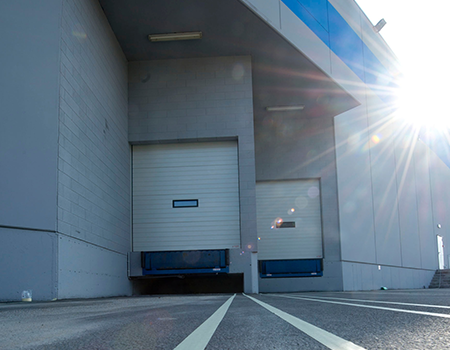

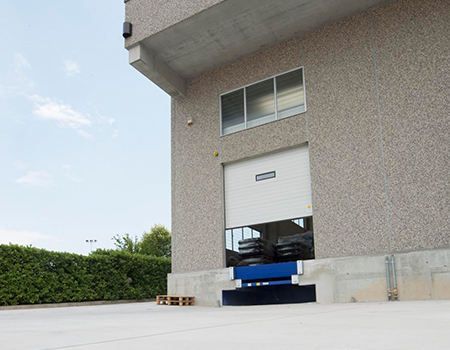

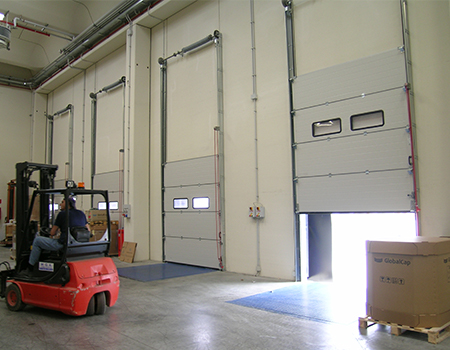

The sectional door opens upwards by sliding internally in special side guides of minimum dimensions, thus guaranteeing ample manoeuvring space for handling.
The absence of floor guides makes the passage of all vehicles easy.

TECHNICAL PRODUCT INFORMATION

The sectional door is made up of 42mm thick elements with hot-dip galvanised steel sheet cladding and polyester-based primer with an embossed effect. The panel is made up of panels with a horizontal uniform horizontal corrugated slatted pattern 125mm pitch and standard heights of 625/750mm (maximum compartment width 6000mm) or alternatively 375/500mm (maximum compartment width 8000mm). Thanks to the special design of the door elements, there is no risk of crushing fingers on the outside or inside. Insulation guaranteed by 100% CFC-free polyurethane foam with a continuous injection process that ensures a high degree of thermal insulation. Internally, the panel is reinforced with sturdy steel plates that guarantee secure fastening of the hinges and all other accessories. The lateral and upper sliding guides are made of steel with a galvanised finish, suitably shaped so as to obtain maximum rigidity and minimum overall dimensions for assembly. The suspension of the sliding guides on the ceiling is carried out by means of galvanised steel brackets with slots to be adapted to each installation situation. The trolleys that slide in the guides have nylon wheels with steel supports. The hinges connecting the panels and the supports for the trolleys are made of steel with a galvanised finish. To cushion the door when opening, galvanised steel shock absorbers are installed in the final part of the guides. The movement and counterbalancing of the door is guaranteed by a special shaft with appropriately sized painted torsion springs. In the event of a spring breaking, the door leaf is prevented from falling down thanks to the parachute system; the load-dependent, load-independent device integrated in the suspension system is equipped with a pawl and active against breakage of the rope or spring (European Patent). The load-bearing ropes are guided between the door leaf and frame without protruding components and therefore without risk of injury. EPDM floor seal with triple chamber and double lip, side seals, lip seal on the lintel and intermediate seal between the individual elements. The manual version of the door can be moved with a chain or rope hoist (mandatory for completely vertical opening). The same can be motorised, as it is always prearranged, even after assembly. The motorization supplied is always in compliance with the regulations in force and completed with all the necessary safety accessories (photocells, lower edge with optosensor, light indicator). In the version with manual operation, the lock is closed from the inside by means of a padlockable bolt, which rotates automatically or with floor lock.

CE marking EN 13241-1 (CPD), resistance class depending on dimensions. Acoustic insolation UNI EN 717-1; depending on the chosen infill. Thermal insulation according to the standard UNI EN13241 annex B UNI EN 12428 according to the selected insulation.

 Optionals:

  • Motors according to current standards
  • Pedestrian door with low threshold
  • Perimeter padding
  • Support beams
  • Lateral tubulars
  • Fixed side and top panels
  • Ventilation grids
  • Doors covering with: sandwich panels, mesh
  • Painting in RAL colour: your choice

DOWNLOAD DATA SHEET

SPECIFICATIONS

Tailor-made solution for every need: each sectional door can be customised with the insertion of pedestrian doors, visual lights or windows, colours according to RAL colours, motors and much more.

Customizable dimensions.

Colour: standard B. co/grey similar RAL 9002 inside and outside.
Colours available from stock, for the external side only, in pre-painted steel without any extra charge:
Similar white/grey RAL 9002, similar white RAL 9010, similar white RAL 9016, similar blue RAL 5010, similar green RAL 6005, similar red RAL 3000, similar grey RAL 9006, similar grey RAL 9007, similar brown RAL 8028, similar grey RAL 7016.

Suitable for outdoor use.
