FLY INOX – Single acting doors

Maximum active and passive safety of people, facilities and property

FLY INOX – Single acting doors

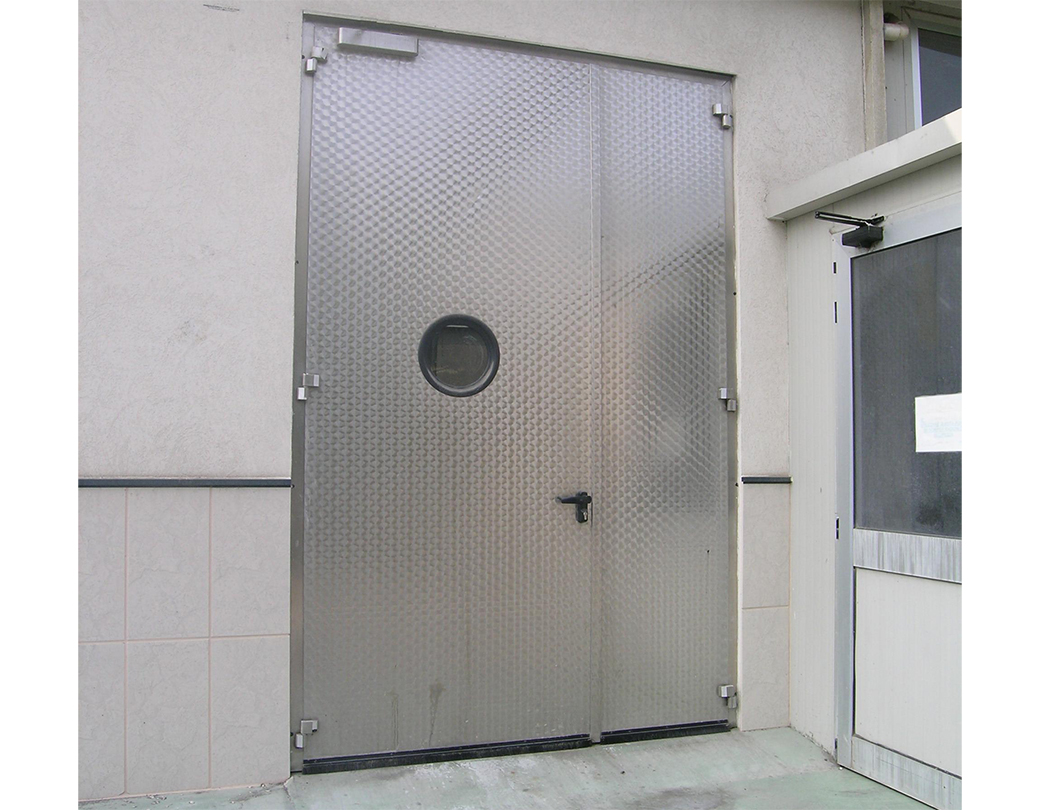

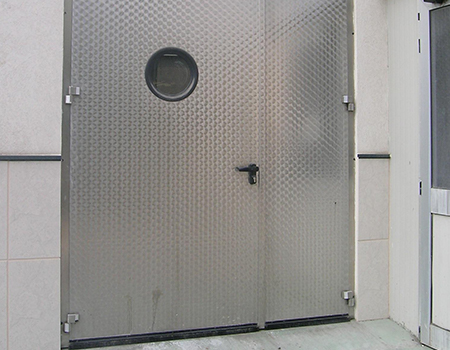

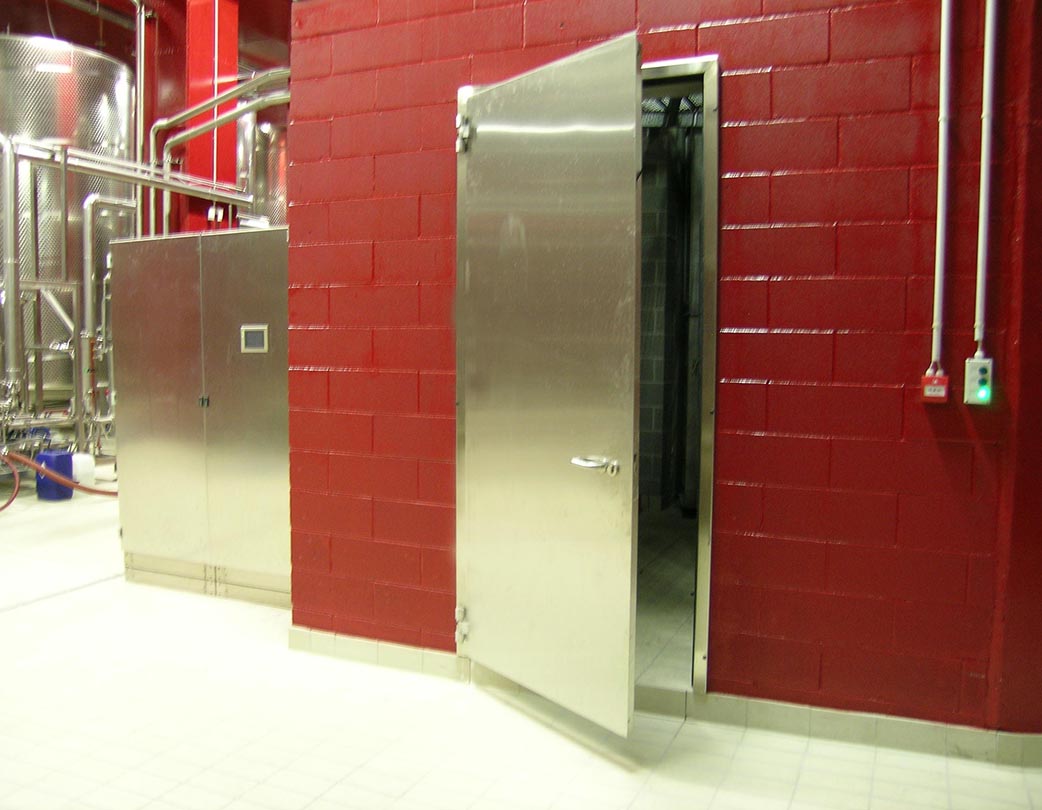

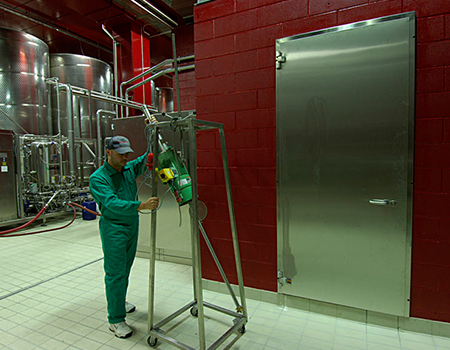

Practical and safe, in all conditions: Moreschi stainless steel hinged doors find their natural place in the production environments of food, chemical and pharmaceutical industries.
They were designed and manufactured with the same production process as the doors. Subject to the strictest quality controls, they guarantee maximum safety and hygiene.

TECHNICAL PRODUCT INFORMATION

FLY STEEL
STAINLESS STEEL SINGLE OR DOUBLE ACTING DOOR

The door is made of 52 mm. thick stainless steel doors Stainless steel perimeter rebate frame, with anti-spiffero gasket seat, anchored to the wall compartment by means of expansion plugs: the doors are entirely covered with AISI 304 stainless steel smooth sheets We prevent scratches by applying adhesive film to be removed after installation.

The insulation is guaranteed by the injection of self-extinguishing polyurethane foam according to DIN 4102 class B2, with a density of not less than 43/45 kg/m³, obtained through an under-press expansion process that ensures a high degree of thermal insulation. The hinges are made of stainless steel, with anti-unscrewing pin and anti-unscrewing frontal pins. They allow the door leaf to be adjusted even after installation.

The closure is guaranteed by a lock inside the door, with internal and external handle in stainless steel or plastic material. In the upper part there is a special profile to be inserted between the frame and the wall; it will be siliconized and will guarantee watertightness between the wall and the frame. In the lower part, the closure is guaranteed by a double needle seal with pre-cut parts to guarantee the possibility of adjustment on non-planar floors.



Fields of application with temperatures between +4° C and +40° C

CE Marking EN 13241-1 (CPD)

Thermal transmittance according to standard 13241-1 U=1.7W / m²K



Optionals:

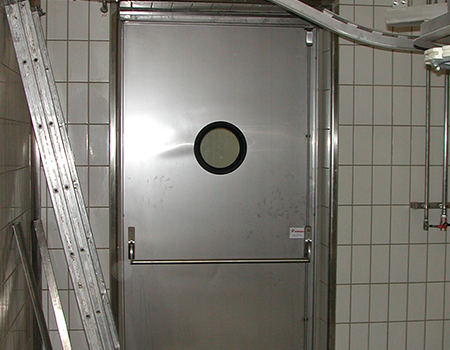

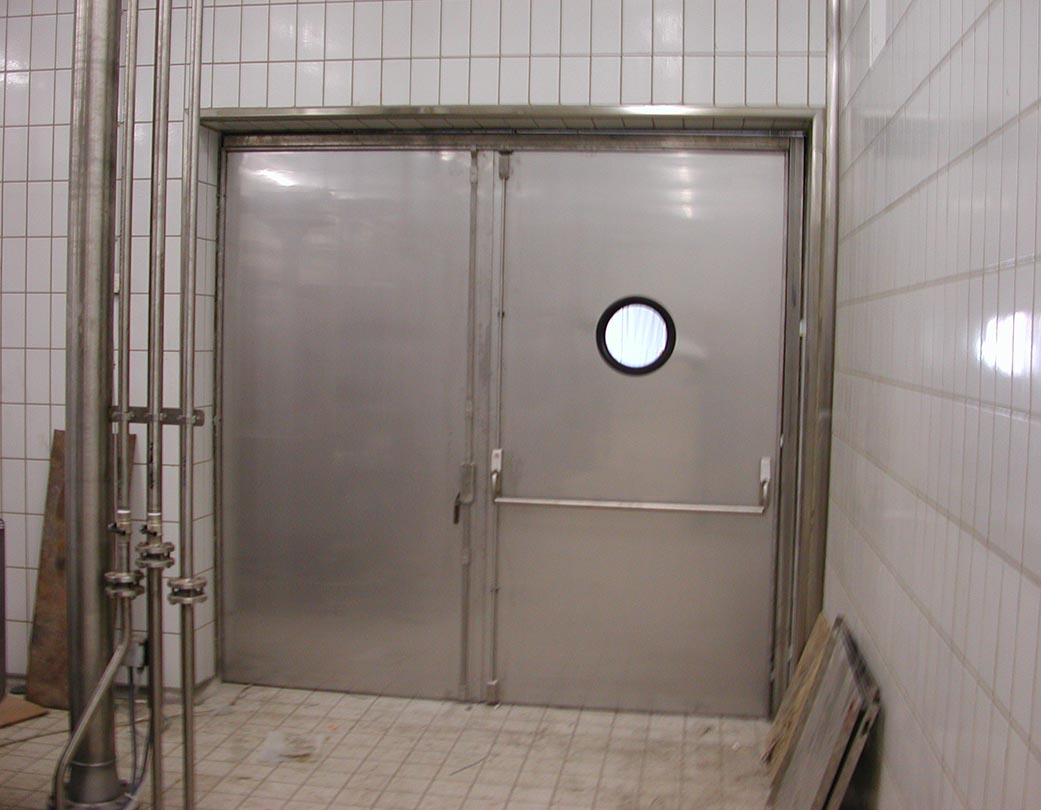

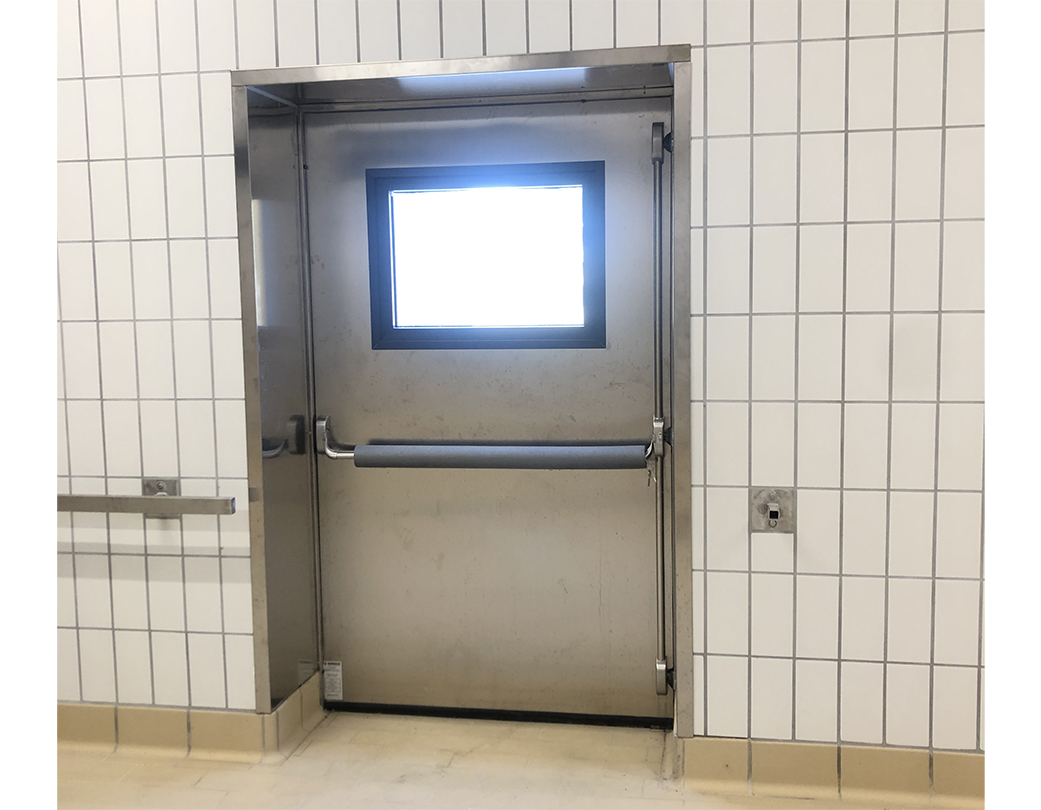

  • Panic bars
  • Panic bars with electric striker
  • Electric locks
  • Security locks
  • Door Closing Pumps
  • Unified cylinders
  • Visual lights with safety glass
  • Window panes with double glazing
  • Perimeter padding
  • Ventilation grids



FLY ALUMINIUM
SINGLE OR DOUBLE ACTING DOOR, ALUMINIUM / STAINLESS STEEL

Door consisting of 40 mm thick panel in AISI 304 stainless steel; containment aluminium profiles and perimeter aluminium rebate frame, with seat for gaskets, anchored to the wall compartment by means of expansion plugs. The panel is completely covered with smooth sheet metal. We prevent scratches by applying adhesive film to be removed after installation.

The insulation is guaranteed by the injection of self-extinguishing polyurethane foam according to DIN 4102 class B2, with a density of not less than 43/45 kg/m³, obtained through an under-press expansion process that ensures a high degree of thermal insulation. Hinges and handle are made of aluminium alloy In the case of installations in compartments not suitable to receive doweled doors, provide for the use of a counterframe with walling clamps, in tubular stainless steel dim.40x15x1.5.



Fields of application with temperatures between +4° C and +40° C

CE Marking EN 13241-1 (CPD)



Optionals:

  • Panic bars
  • Panic bars with electric striker
  • Electric locks
  • Security locks
  • Door Closing Pumps
  • Unified cylinders
  • Visual lights with safety glass
  • Window panes with double glazing
  • Perimeter padding
  • Ventilation grids

DOWNLOAD DATA SHEET

SPECIFICATIONS

For food, chemical, pharmaceutical environments.

FLY ALUMINIUM
Hinged door, aluminium / stainless steel
Maximum achievable dimensions:

Single leaf door 1300x2500

Double leaf door 2500x2500

Acciaio inox AISI 304 – AISI 316

Suitable for indoor and outdoor use
