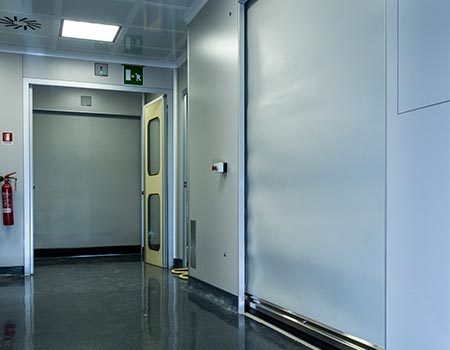

CLEAN - Rapid door for clean room

Rolling door - Suitable application in Class 6 - ISO 14644-1

CLEAN - Rapid door for clean room

Designed and manufactured by Moreschi, they meet the strict criteria of the pharmaceutical, biotechnology and medical technology, cosmetics, electronics, aerospace and automotive industries.
Able to provide excellent airtightness and high operating speed, it minimises the passage of impurities between rooms.

TECHNICAL PRODUCT INFORMATION

Structure: Folded sheet metal with standard finish painted white RAL9010. Removable casing for maintenance.



Curtain: Antistatic fabric with FDA approval. Standard colours (similar RAL): Grey (7038), Blue (5005). The bottom plinth consists of sheet metal with standard finish painted white RAL9010 and sealing gasket.



Motorization: Worm geared motor unit external to the structure covered with crankcase. Nominal speed up to 1.25 m/sec. Control unit with external inverter that allows programming the movement of the sheet with acceleration and braking ramps and speed control.



Safety: Photocell barriers



Fields of application with temperatures between +4° C and +40° C

Air permeability with pressure of of 50 Pa < 12 m³/m²*h EN12426

220V single-phase power supply

CE marking EN13241-1

Optionals:

Antistatic Curtain colour Sky blue (5015) Smooth
Structure colouring in RAL colour on request
Stainless steel structure
Window section h.500mm
Construction with UL components
UPS

SPECIFICATIONS

A refined design combined with a solid structure, guarantee maximum cleanliness inside the clean rooms, reducing the running costs of the system.

Maximum standard dimensions: L 2850mm x H 3000mm

Standard colours (RAL similar): Grey (7038) antistatic, Blue (5005) antistatic

Suitable for indoor use.
