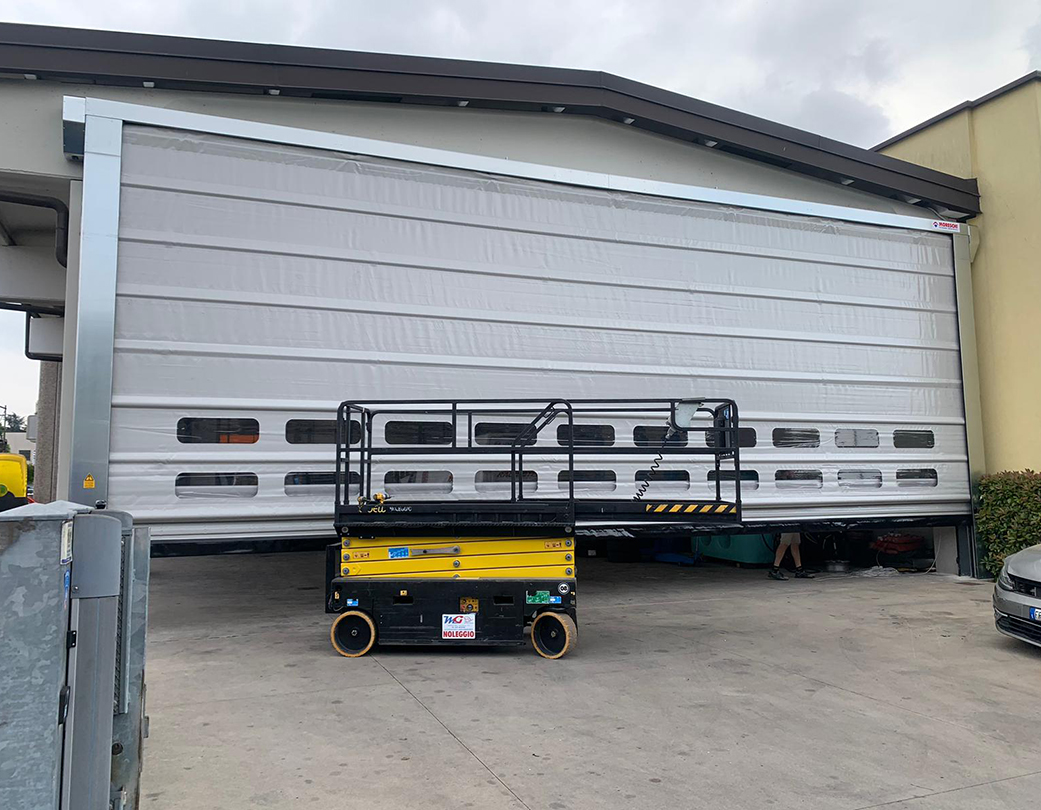

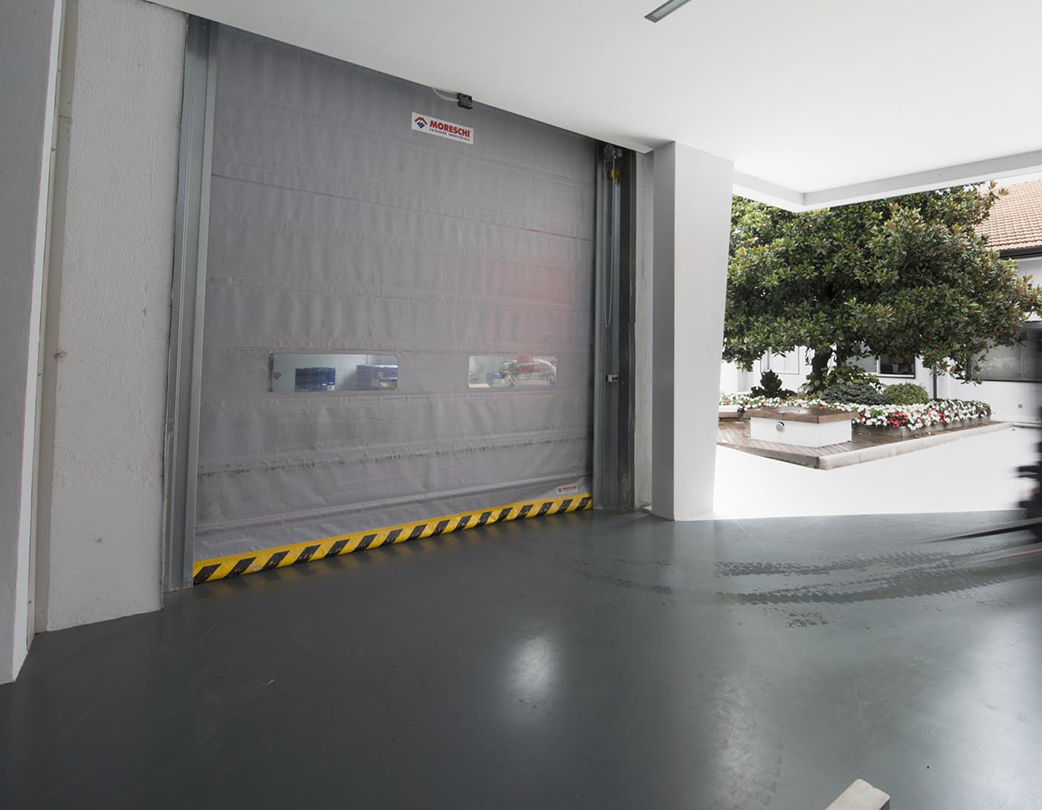

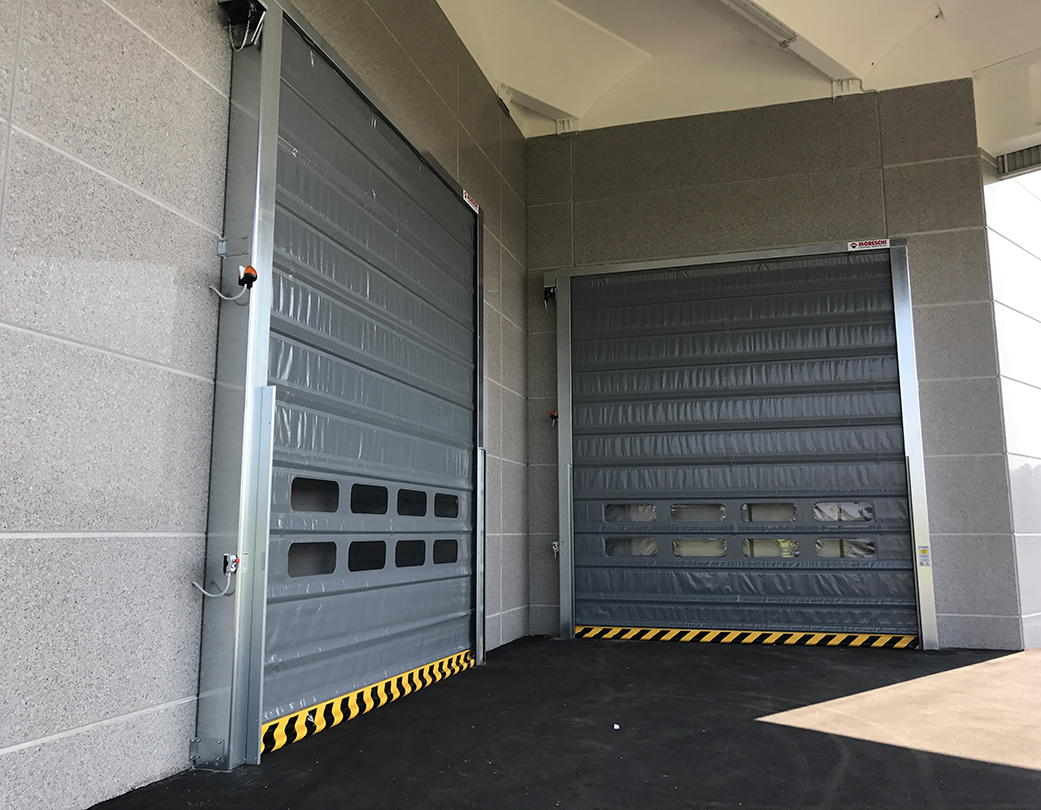

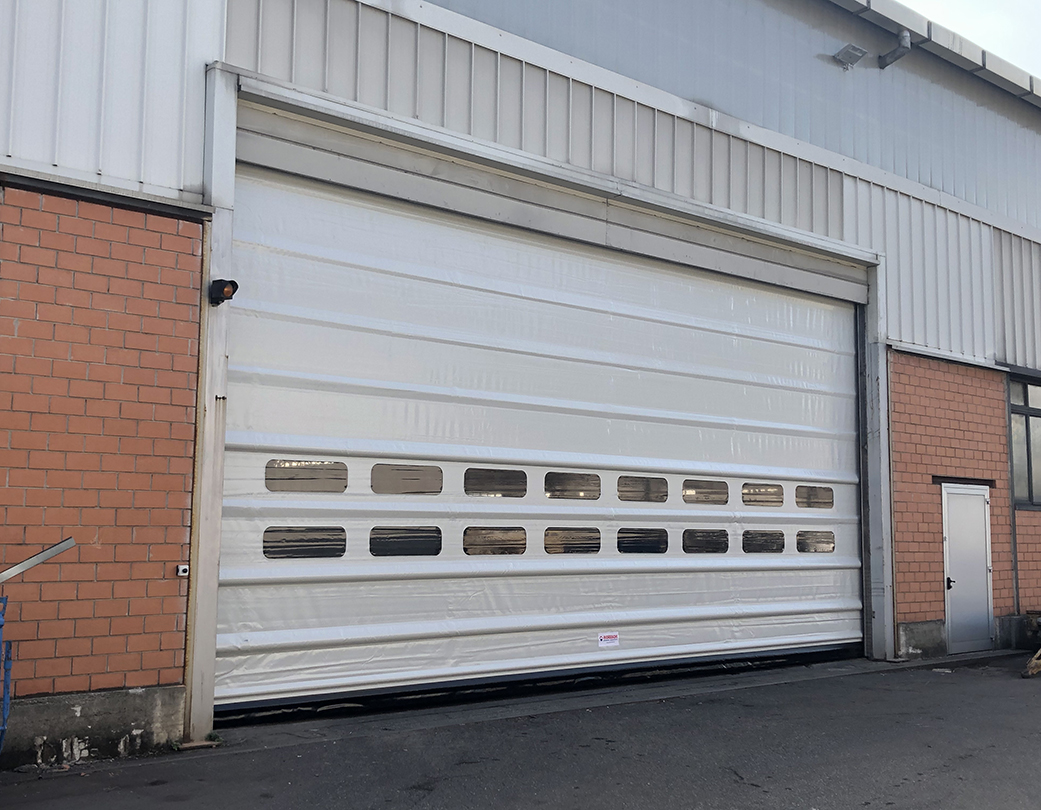

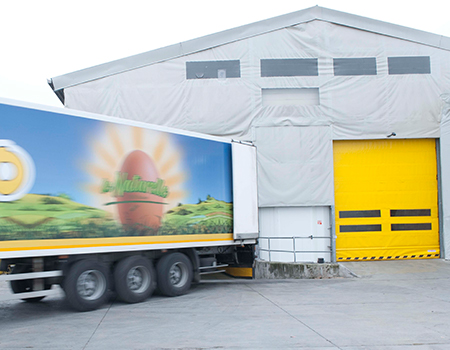

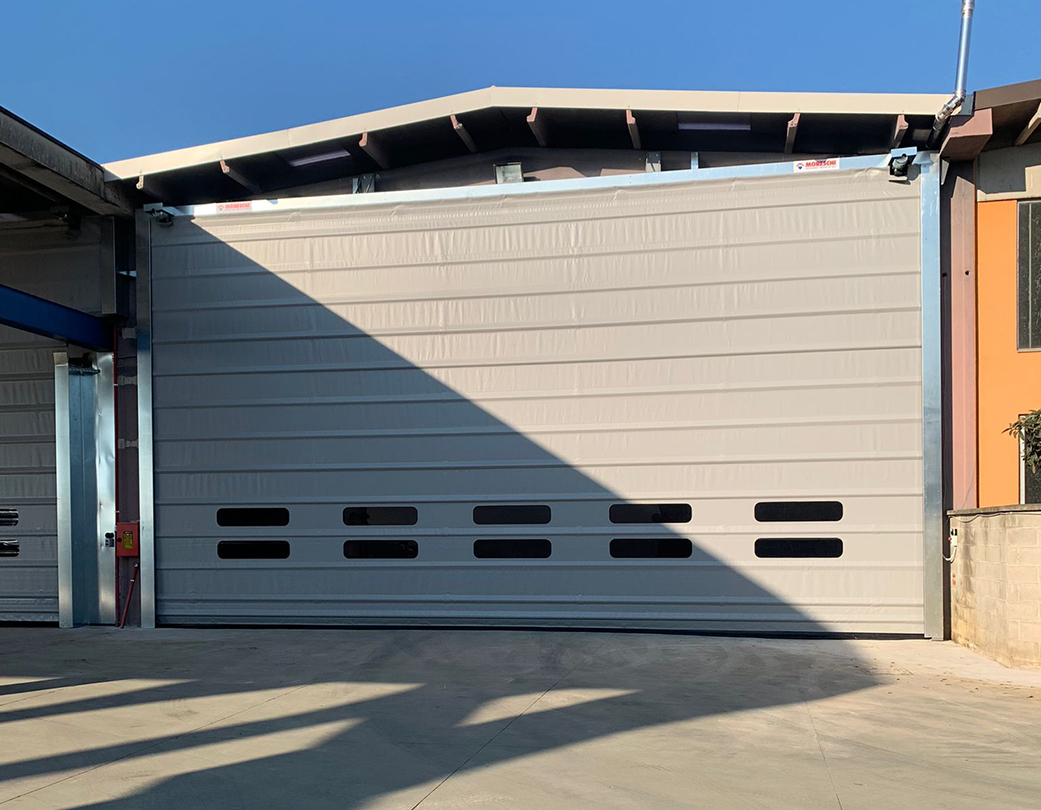

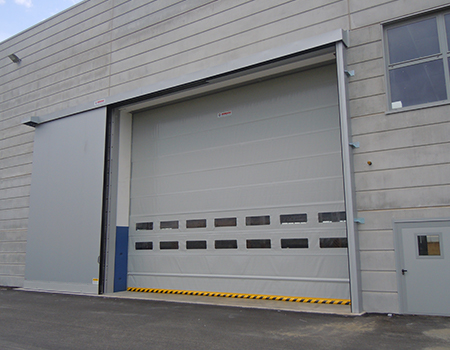

SPEEDY FOLD - Folding rapid door

With galvanised steel structure

SPEEDY FOLD - Folding rapid door

Moreschi's care for materials and cutting-edge technology make this door robust and durable, ideal for supporting the company's production flows.
The upward opening is very fast, thanks to the self-supporting structure in galvanized steel and the tear-proof PVC sheet that counteracts the wind thrust.

TECHNICAL PRODUCT INFORMATION

FOLDING RAPID door consisting of self-supporting metal structure with galvanised steel finish and wear-proof rubber profiles for sliding surface; rotation shaft on bearings; 400/230 V three-phase power supply operating unit with electromagnetic brake; limit switch unit; positioned on the sides. Motor cover in galvanised sheet steel; protected transmission elements; electrical system with flame resistant cables CEI 20-22-II; anti-crushing safety (UNI EN 12453): infrared photocell transmitter-receiver unit; inductive type inductive edge via radio with self-test; with flexible tear-proof PVC fabric sheet. Switchboard in IP 66 plastic case, programmable operating logic (automatic, semi-automatic, man present), 230/400 V three-phase, 50 Hz power supply, 24 V low voltage auxiliaries. Opening push-button on the panel and n°01 separate open/stop push-button panel. Device for manual opening and closing from ground with safety micro and crank handle in absence of voltage.

Intermittent flashing beacon with 220 V power supply.

Speed of wrapping up to 1 m/sec

Rigid Structure with steel tubes for wind load resistance class 2 in PVC Curtained polyester tear-proof Curtain fire reaction class 2 (printed on the cloth as required by law) with lifting straps with high safety factor.

Canopy supplied in its standard configuration with n° 02 rows of flexible transparent pvc Visual lights s dim.850x300mm. with rounded edges.



Optionals:

Structure colouring in RAL colour on request

Stainless steel structure

Additional window section / row of Visual lights

Insulated towel

UPS

Front motor

Radar, transmitter with receiver, magnetic floor loop, cable microswitch

Anemometer

Interlock

DOWNLOAD DATA SHEET

SPECIFICATIONS

A wide range of colours and finishes allows you to create the perfect installation for every context.

Customizable dimensions.

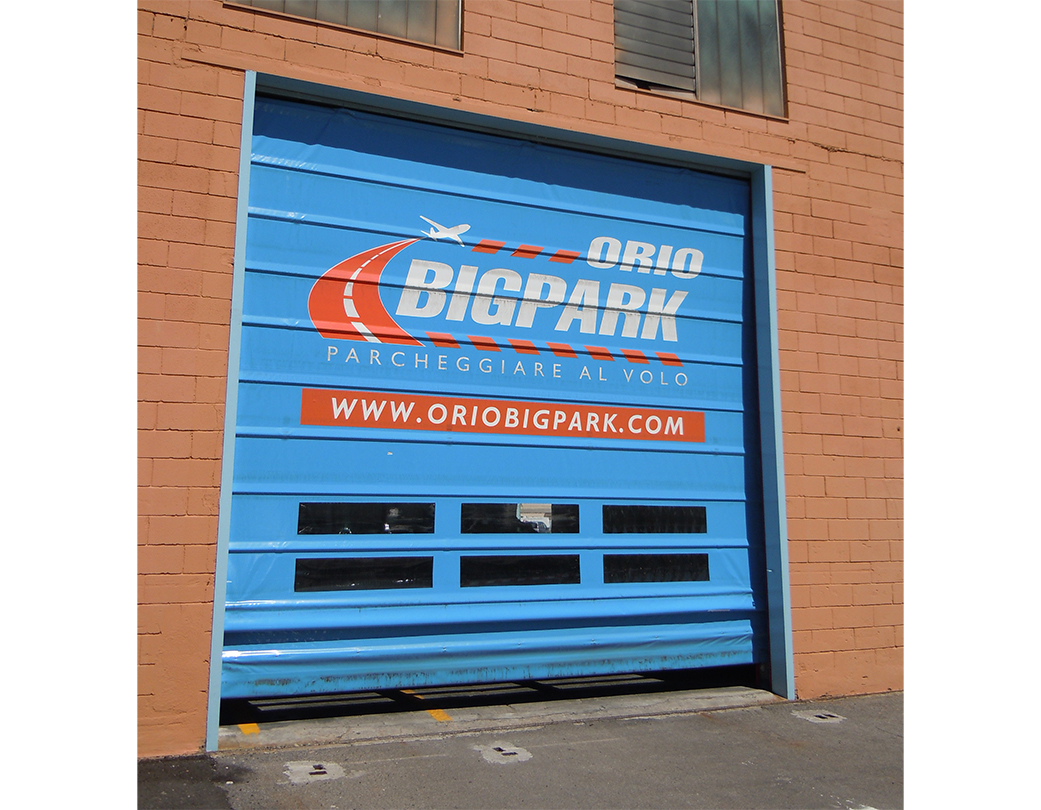

Logo in silkscreen printing
Available colours:
orange similar RAL 2004, cream similar RAL 1013, white similar RAL 9016, yellow similar RAL 1003, red similar RAL 3002, grey similar RAL 7035/7037/7038, green similar RAL 6026, light blue similar RAL 5015, blue similar RAL 5005/5010/5013, black similar RAL 9005, silver similar RAL 9006

Suitable for indoor or indoor use.
