FLY PVC - Single or double leaf in pvc door

Economic solution to separate production departments.

FLY PVC - Single or double leaf in pvc door

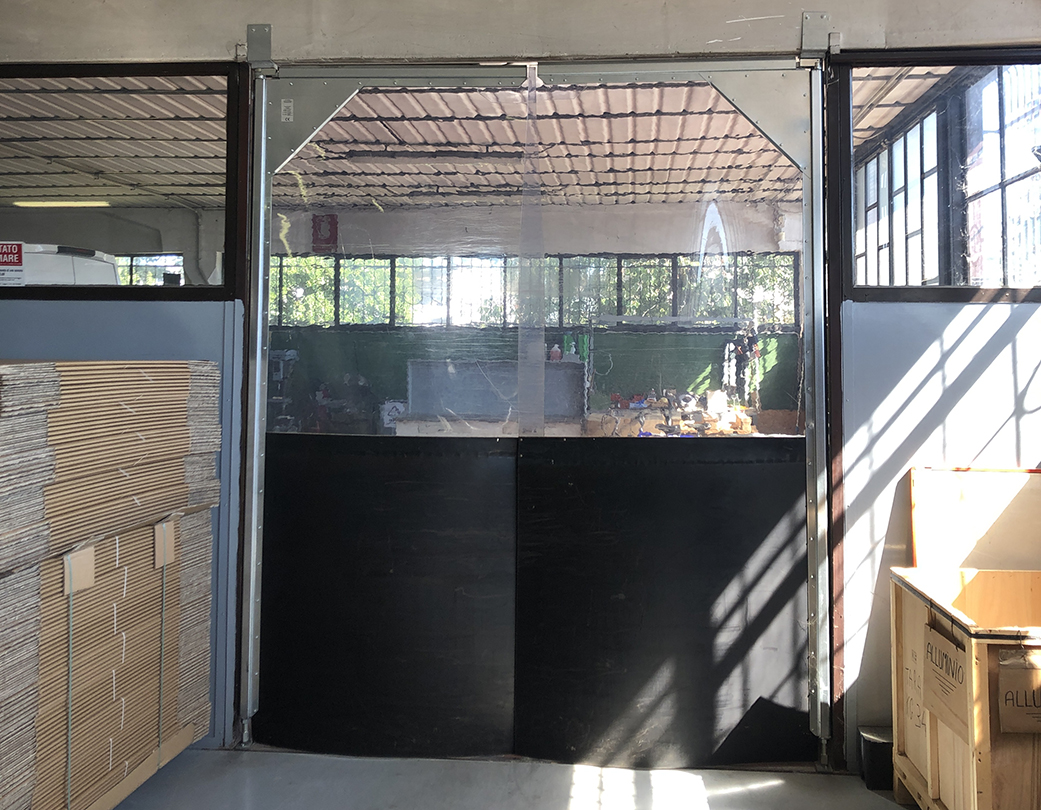

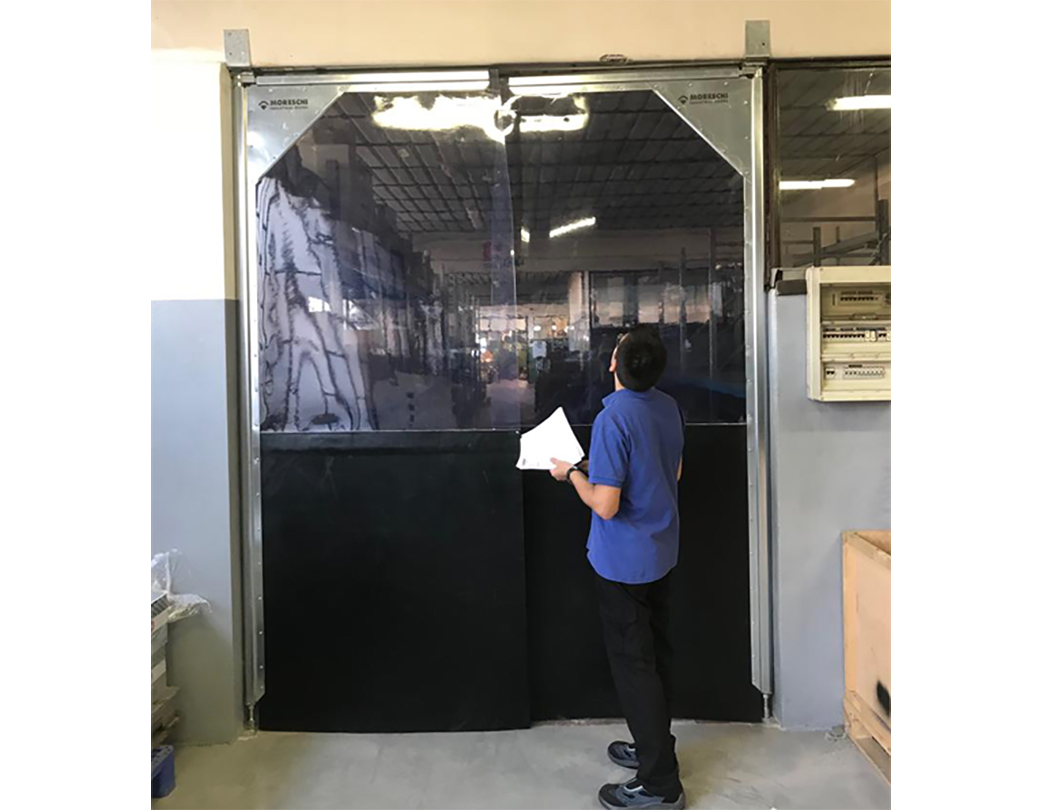

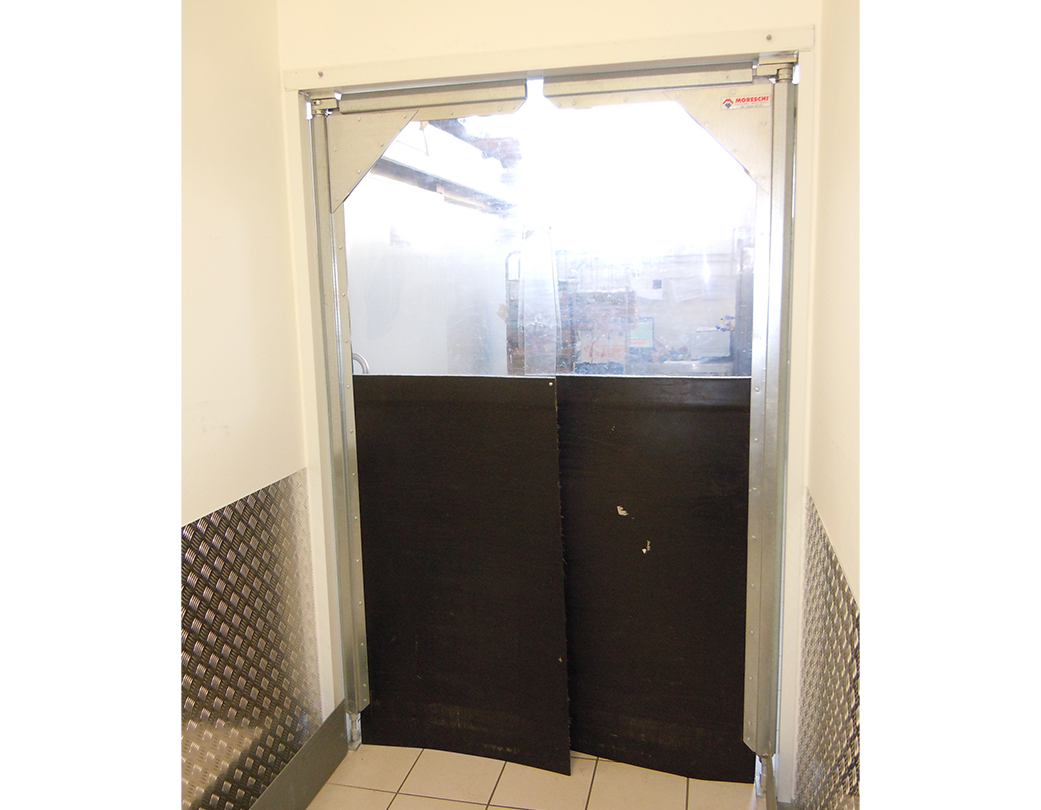

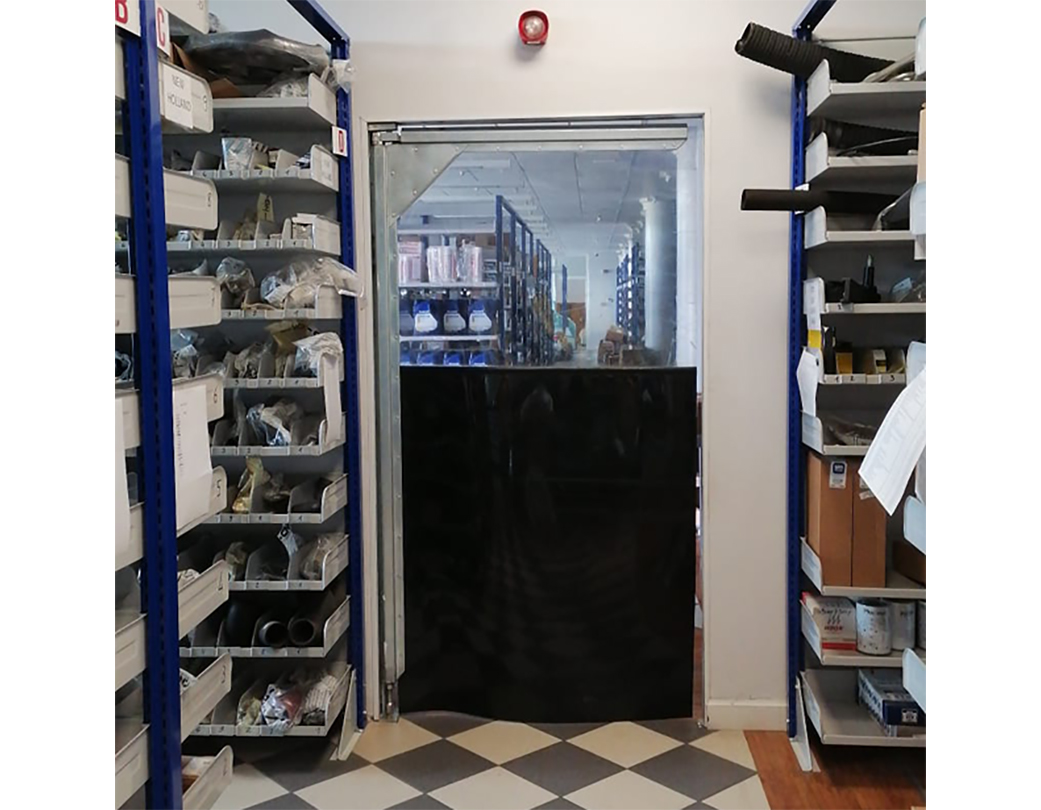

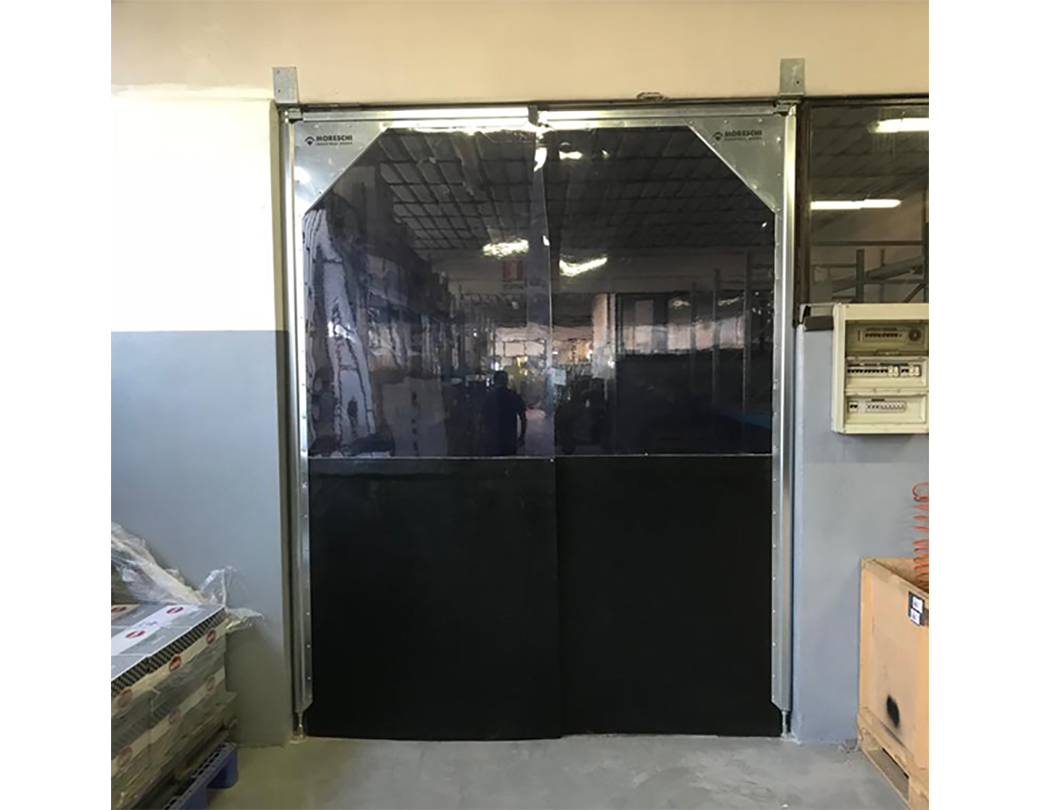

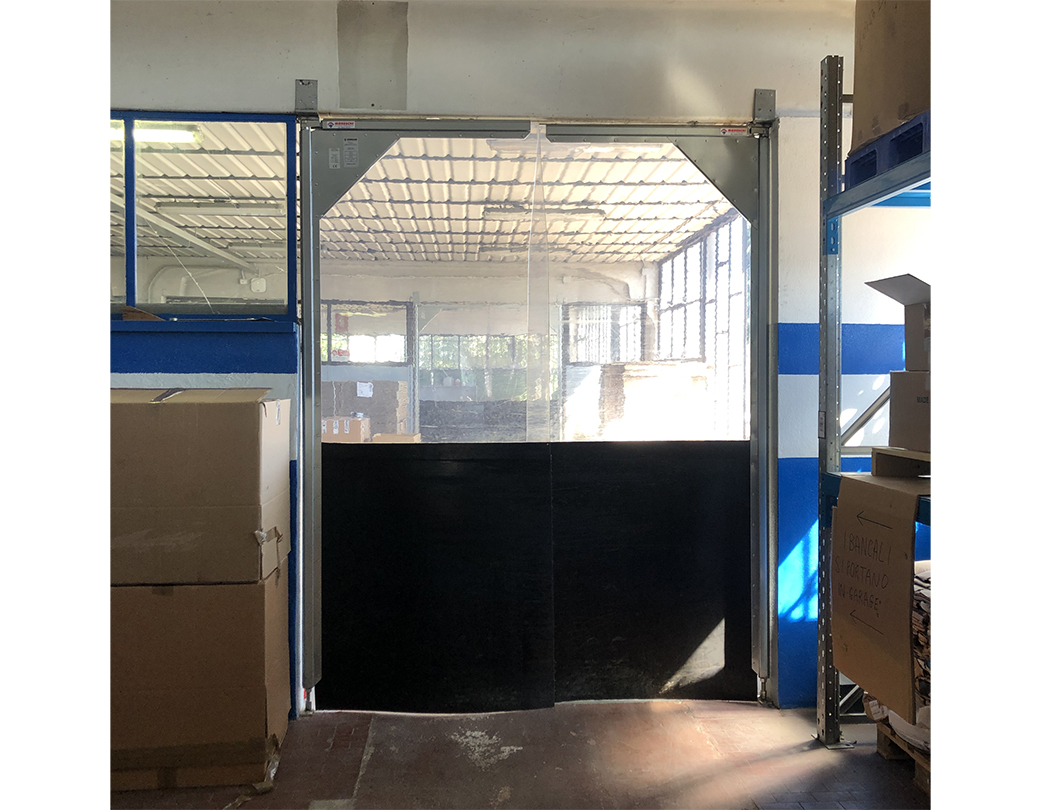

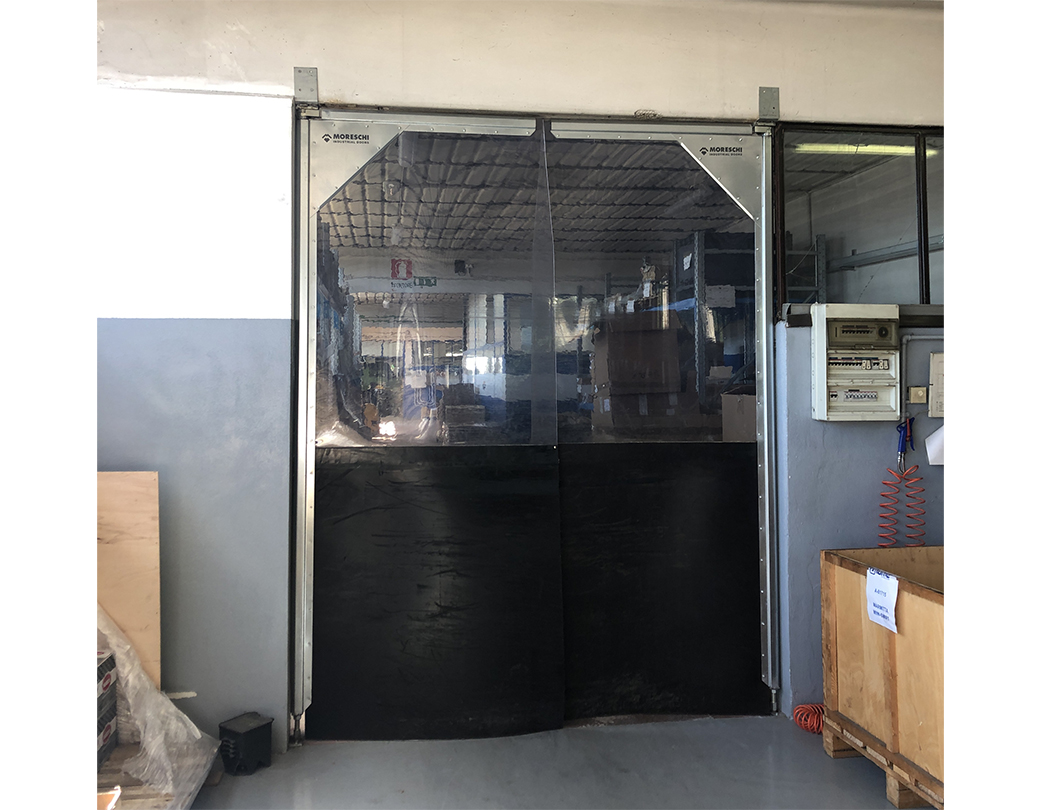

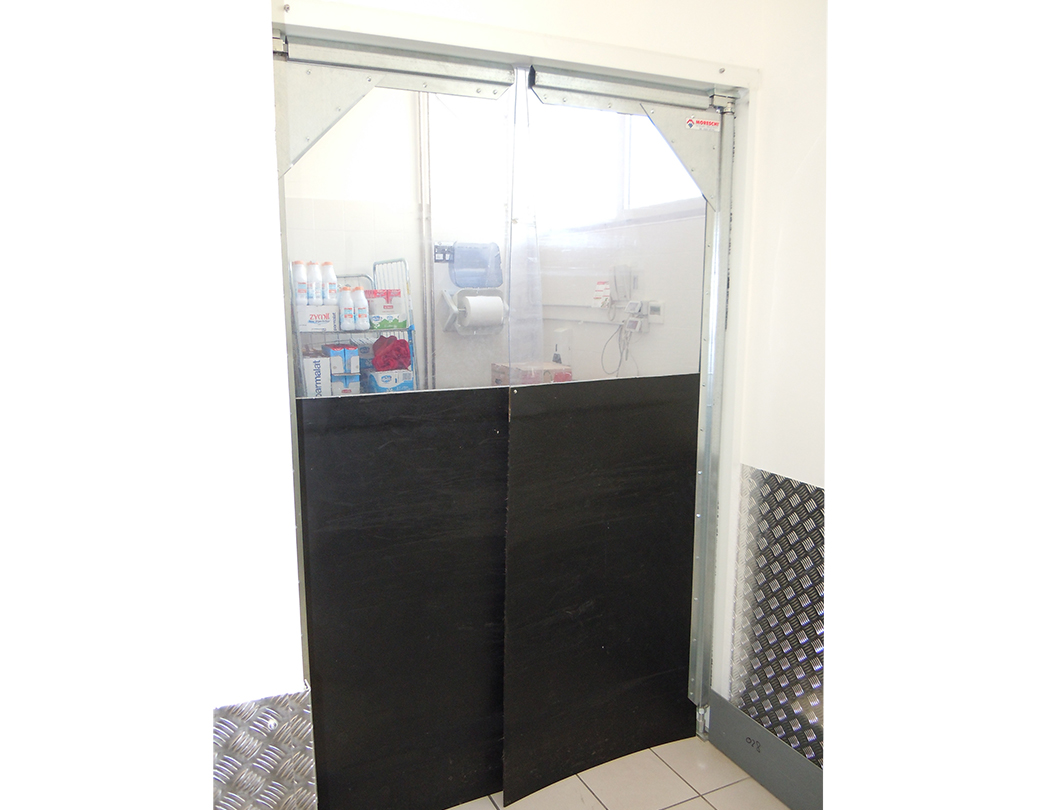

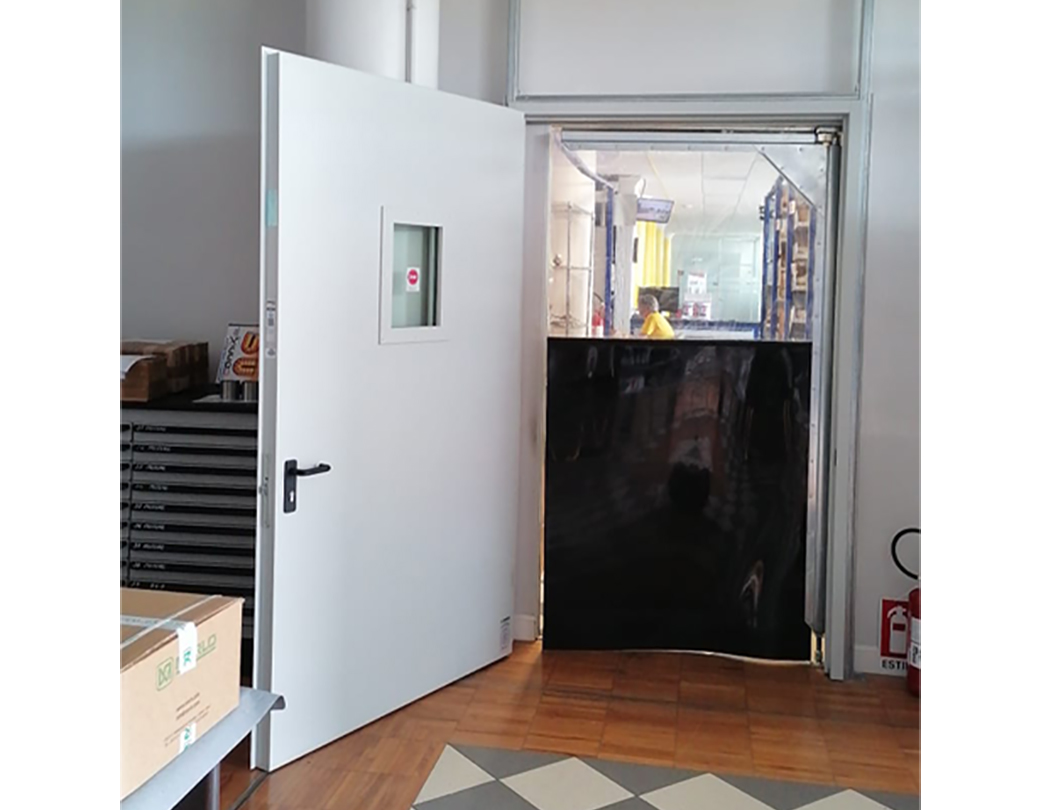

The pvc hinged door allows maximum transparency and the continuous flow of vehicles in total safety in small to medium wall compartments.
With one or two leaves it can be installed both inside and outside buildings, with push opening and spring reclosure.

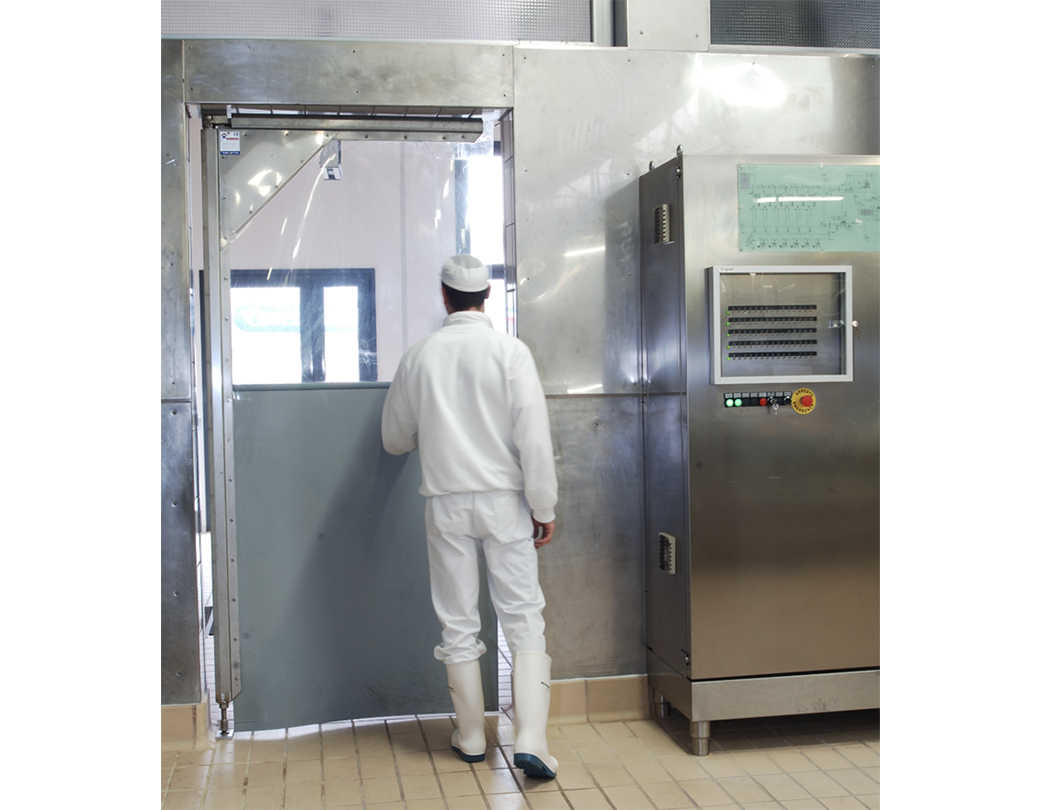

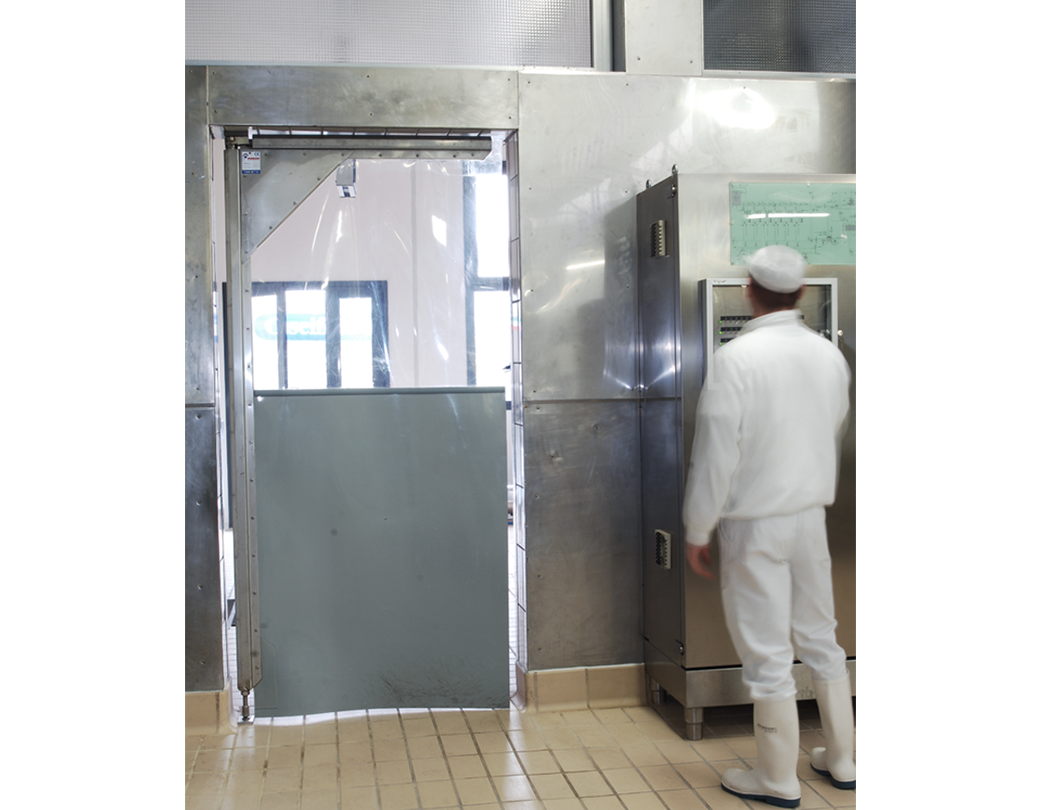

The supporting structure, upright and upper crossbar are supplied as standard in galvanised steel; for food or chemical industries, they can be supplied with stainless steel structure.

TECHNICAL PRODUCT INFORMATION

The doors are made with a bearing structure in galvanized steel profile, cold bent with monolithic structure. Each door leaf is equipped with an opposing arm closing device with adjustable force torsion spring incorporated in the supporting structure. The hinges rotate, in the lower part, on steel balls and, in the upper part, within a seat with self-lubricating bushings. The flexible panels are made of top quality materials specifically designed to guarantee maximum resistance and durability even in very severe conditions. P.V.C. are used (Polyvinyl chloride) with the addition of plasticizers that make it possible to use it even at low temperatures (down to -35°C) while maintaining the characteristic of transparency and resistance to impact and abrasion. Black anti-abrasive rubber with alternative Curtain inserts to increase tear resistance. The door can only be installed in the passageway light compartment.

DOWNLOAD DATA SHEET

SPECIFICATIONS

With one or two leaves it can be installed both inside and outside buildings, with push opening and spring reclosure.

Minimum size: L. 1000 x H. 2000
Maximum dimensions: L. 4000 x H. 4500
Realization of non-standard dimensions and for single leaf doors on request.

Suitable for indoor or indoor use.
