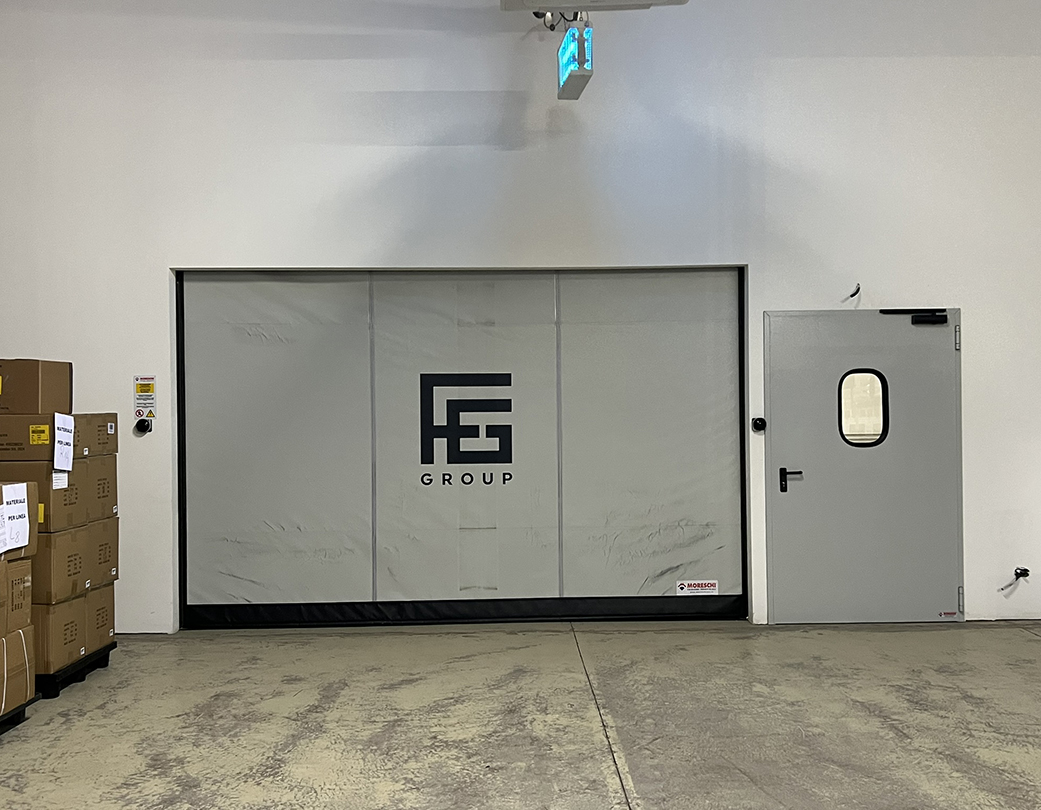

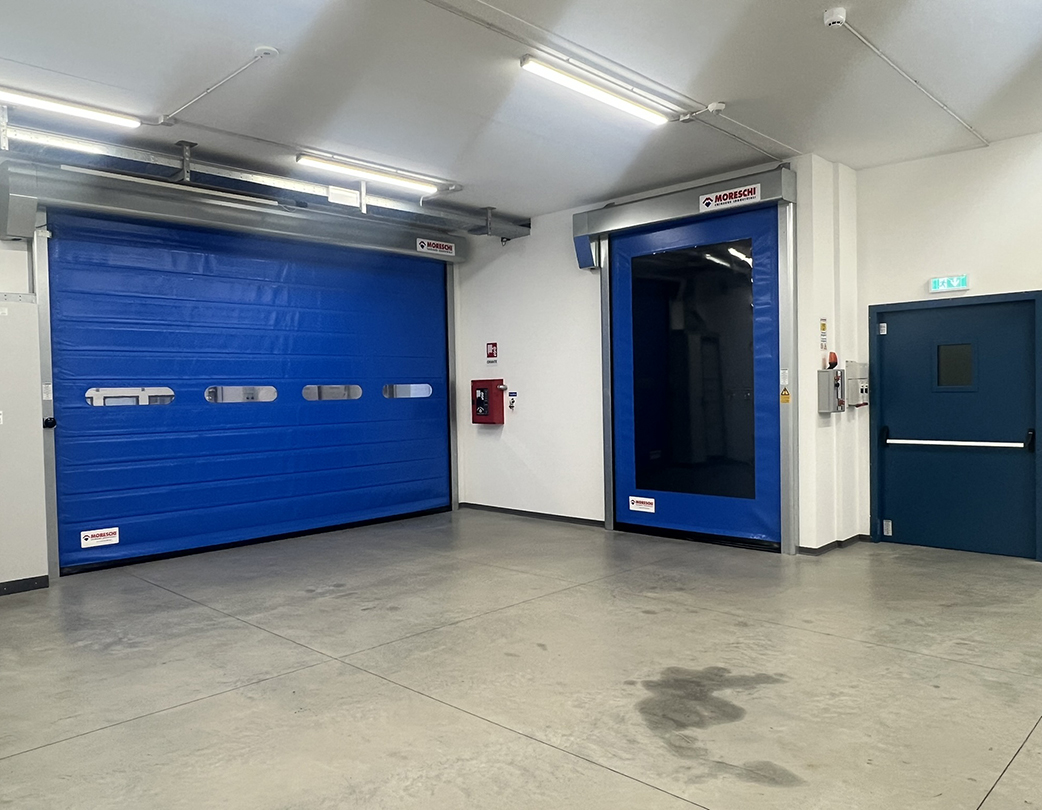

ZIPPER ROLL – Self-repairing rapid roll-up doors

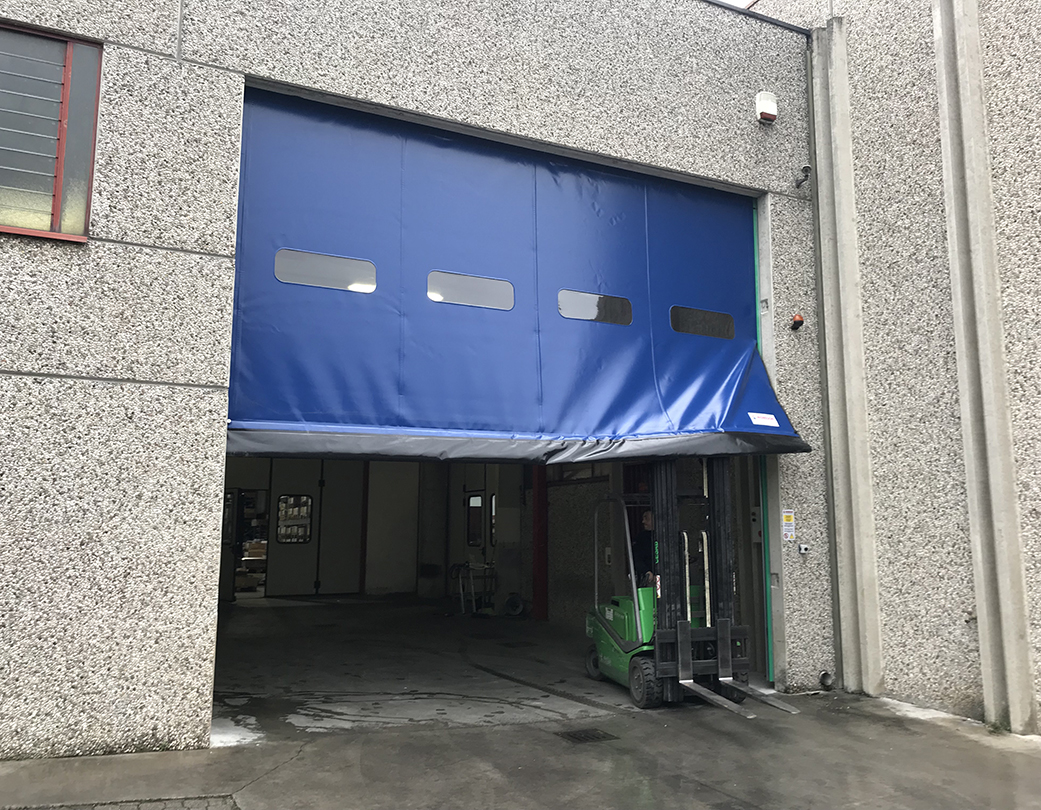

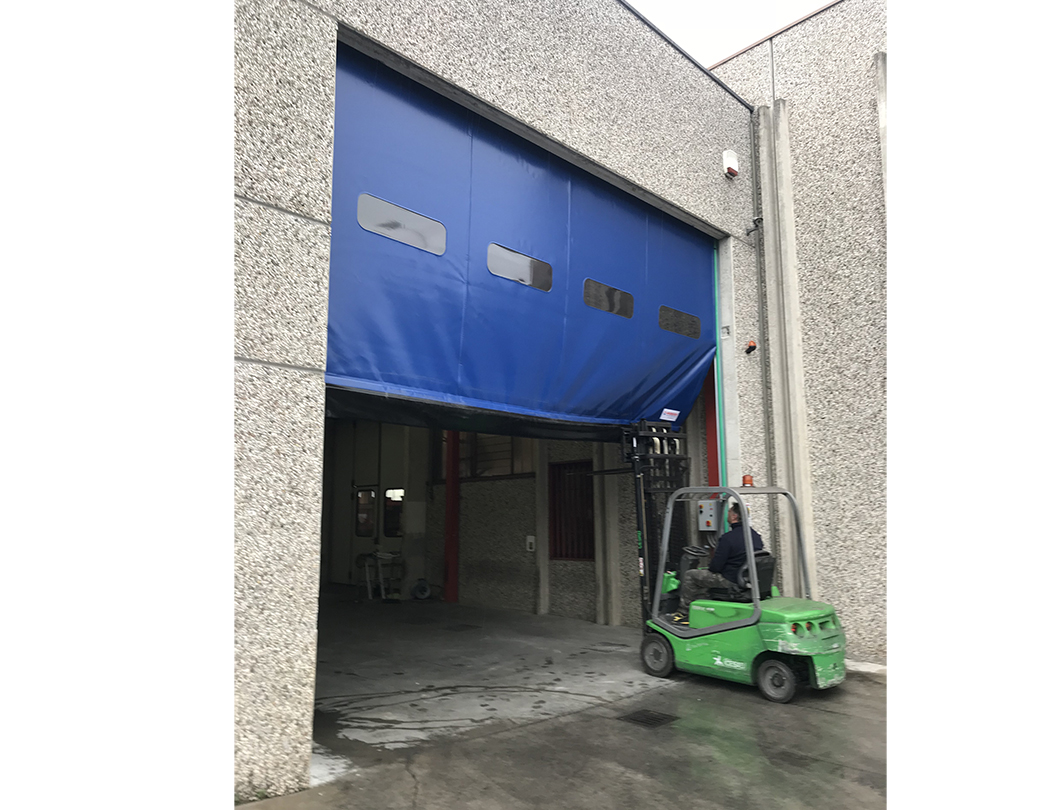

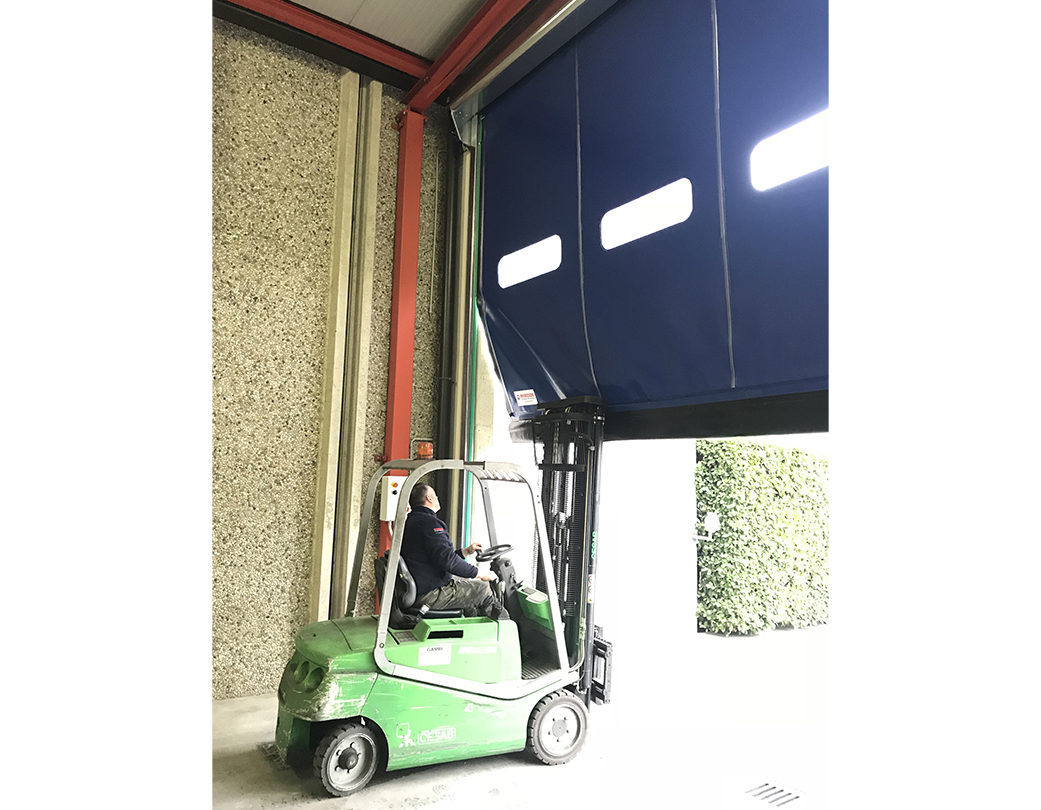

The study, design and production of all Moreschi doors is based on an experience of over 50 years of activity. In particular, high-speed doors are born from ideas and market requests that drive us to create simple but at the same time innovative and personalized products. Possible bumps to the mantle, they allow at the same to re-enter the lateral guides because they are suitably shaped and made of self-lubricating polyzene. This particular solution guarantees continuous functionality without damage to the door, which is thus defined as self-repairable. Coating without stiffening bars. Lower edge of the flexible mantle.

Intermittent flashing beacon with 220 V power supply.

Speed of wrapping up to 1 m/sec

The conopy does not contain any rigid elements, therefore its flexibility and the safety systems such as the side photocells guarantee a product that is easy to use and safe to handle.

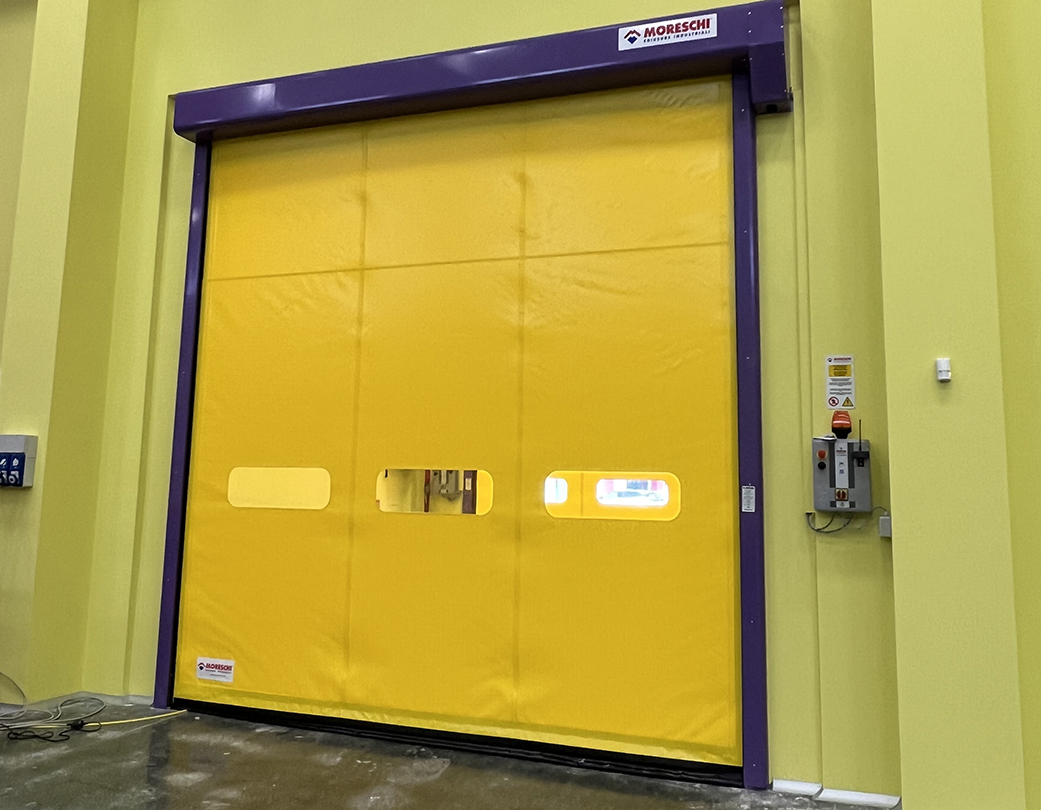

Our doors are controlled by a control panel housed in an IP 66 plastic container, equipped with an inverter for acceleration/deceleration movement control and management, single-phase 220 V power supply, 50 Hz. This guarantees intensive use in continuous service in industrial environments.

Electrical system with CEI 20-22-II fireproof cables;

– safety (UNI EN 12453).

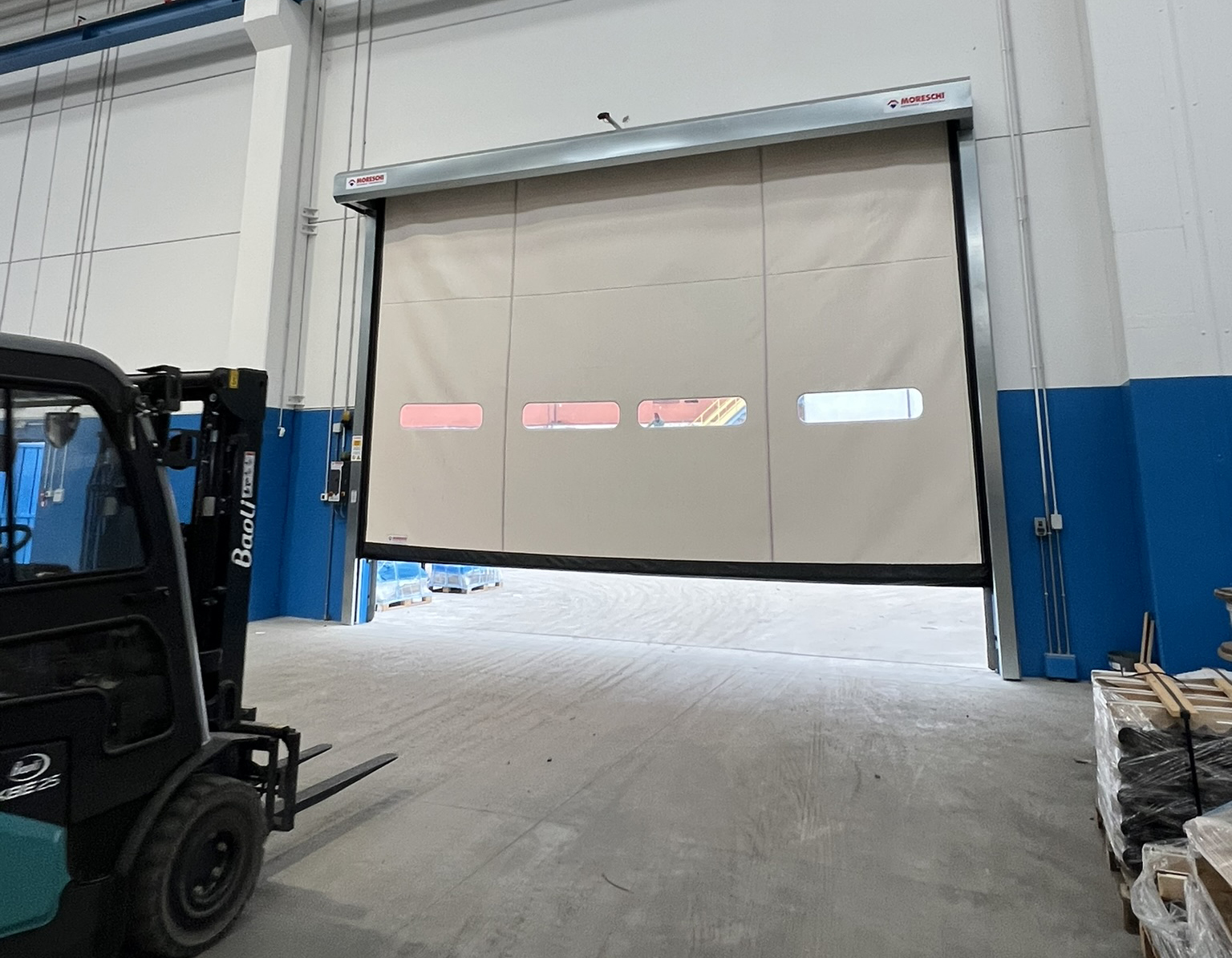

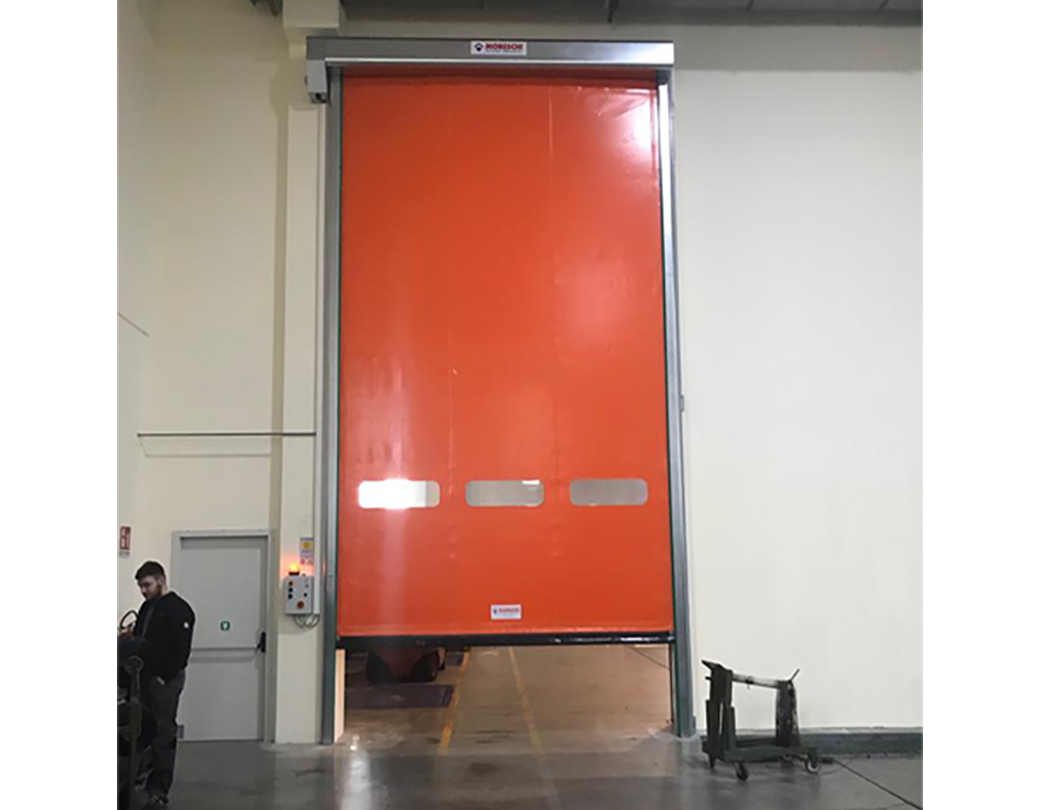

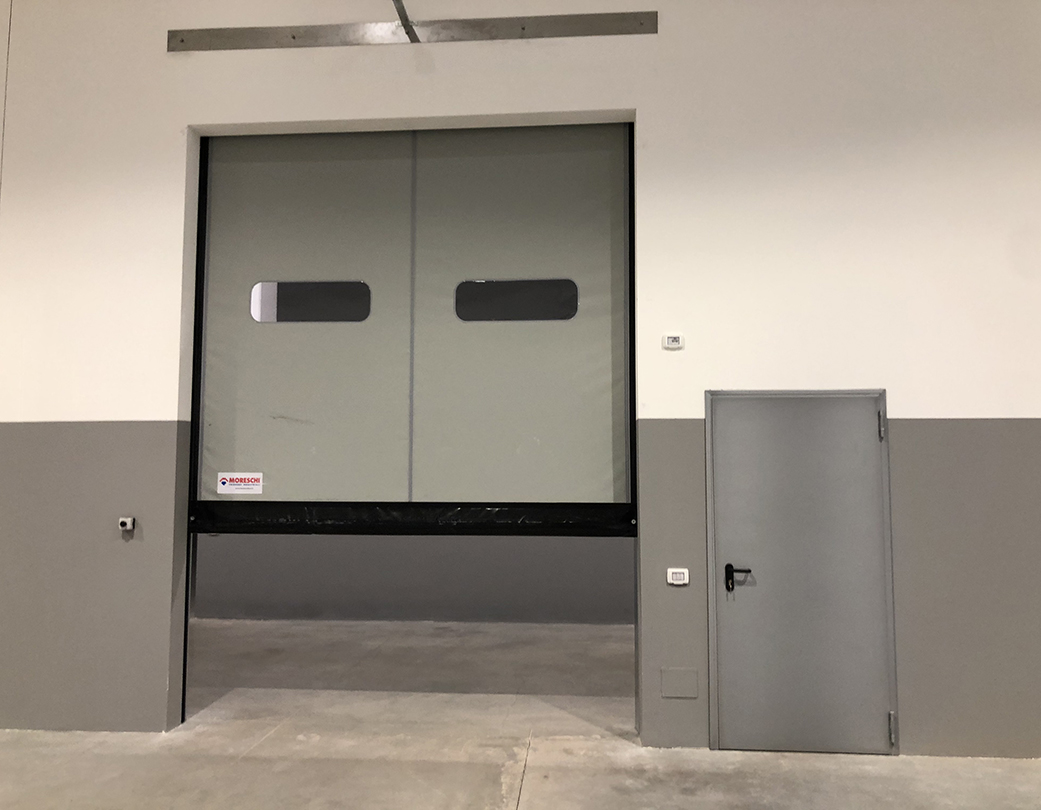

Canopy supplied in its standard configuration with n° 02 rows of flexible transparent pvc Visual lights s dim.850x300mm. with rounded edges.

Optionals:

Structure colouring in RAL colour on request

Remote controller

Radar

Additional window section / row of Visual lights

Magnetic loop on the floor

Counterweight reopening system

Front motor

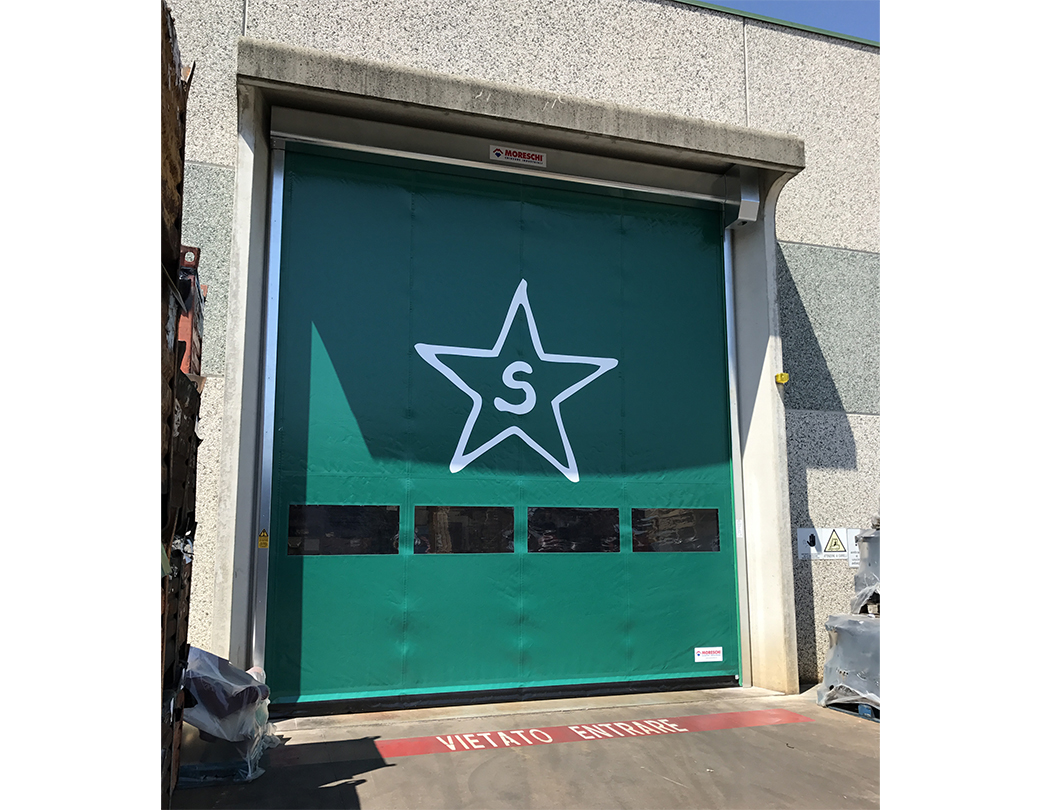

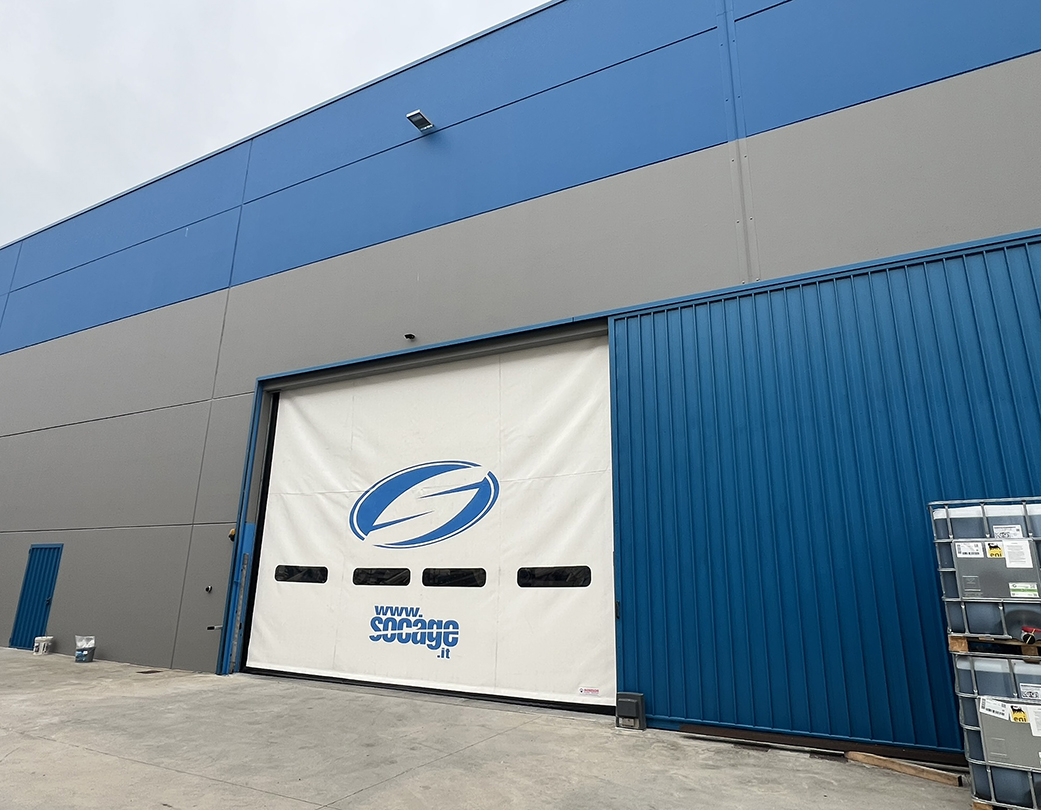

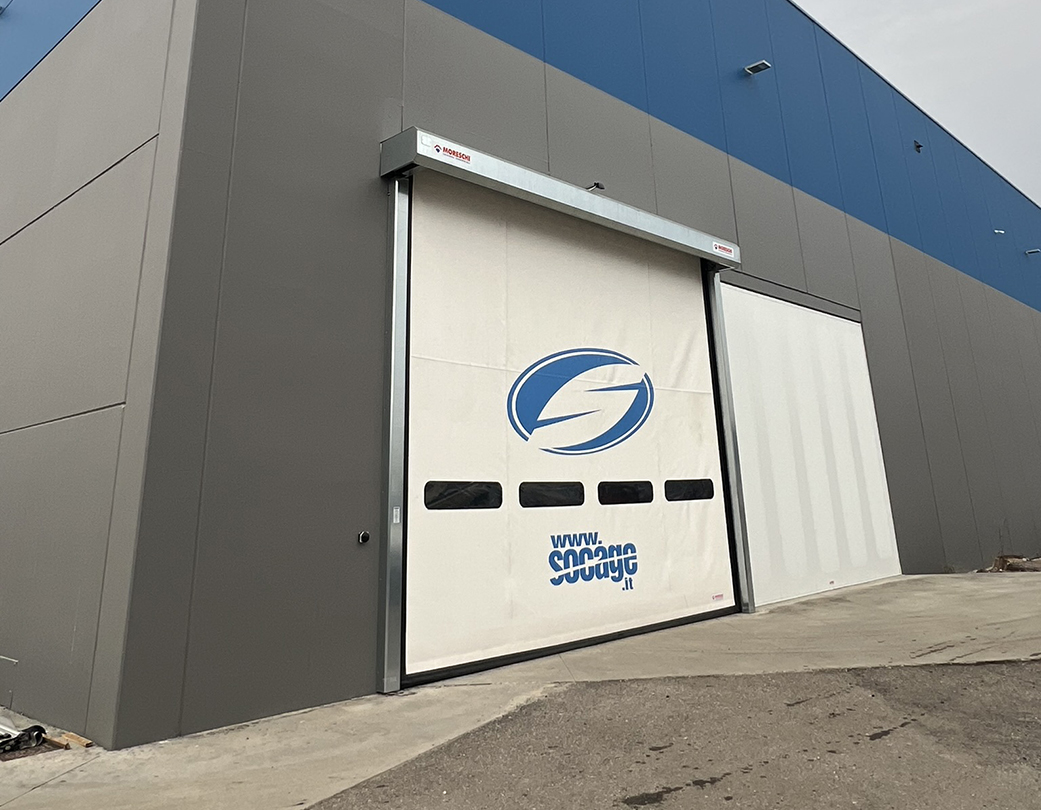

Screen printed logos on the coat
